Right-Angle Gearbox
TR-L Right-Angle Gearbox 90 Degree Precision Planetary Reducer
TR-L series 42/60/90 type precision reducer 90-degree Angle reducer planetary right-angle commutator. Standard and custom configurations available; OEM / ODM customization supported.

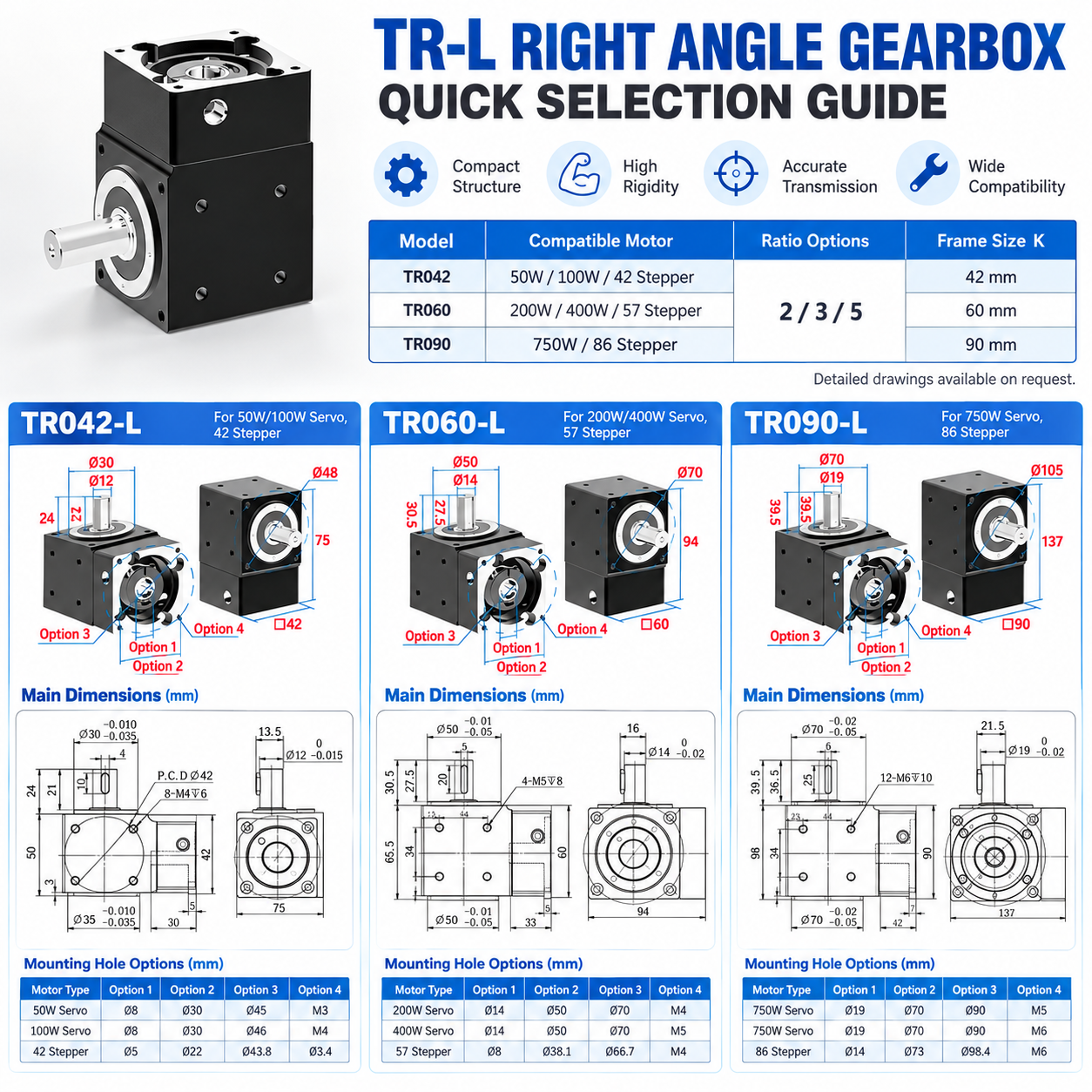

Specifications
- Series
- TR042-L / TR060-L / TR090-L
- Compatible Motors
- 50W / 100W servo or 42 stepper (TR042-L); 200W / 400W servo or 57 stepper (TR060-L); 750W servo or 86 stepper (TR090-L)
- Ratio
- 2 / 3 / 5
- Structure
- 90-degree right-angle, compact cubic design, stable precision transmission
- Drawing

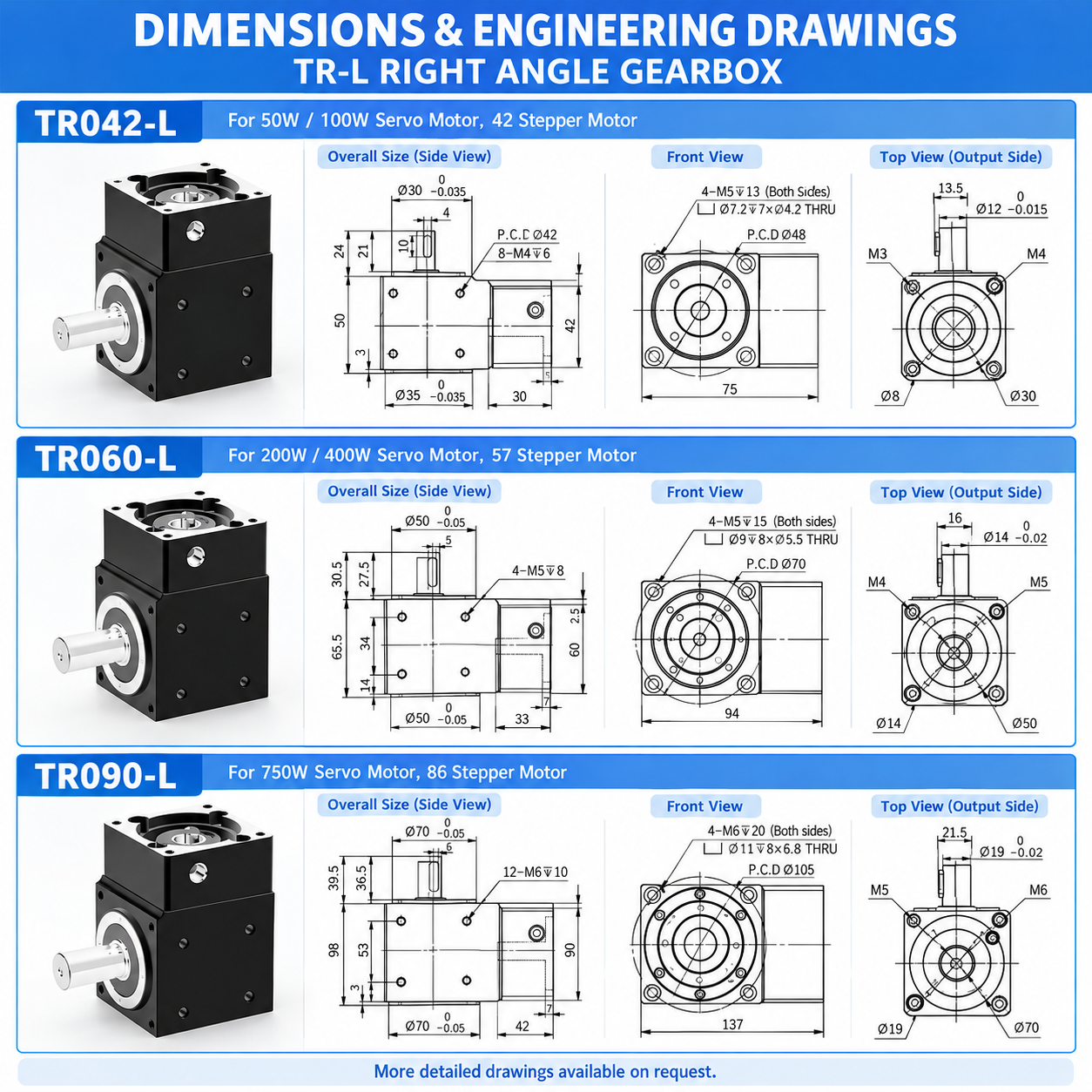

- 2D/3D drawings available on request
Product Overview

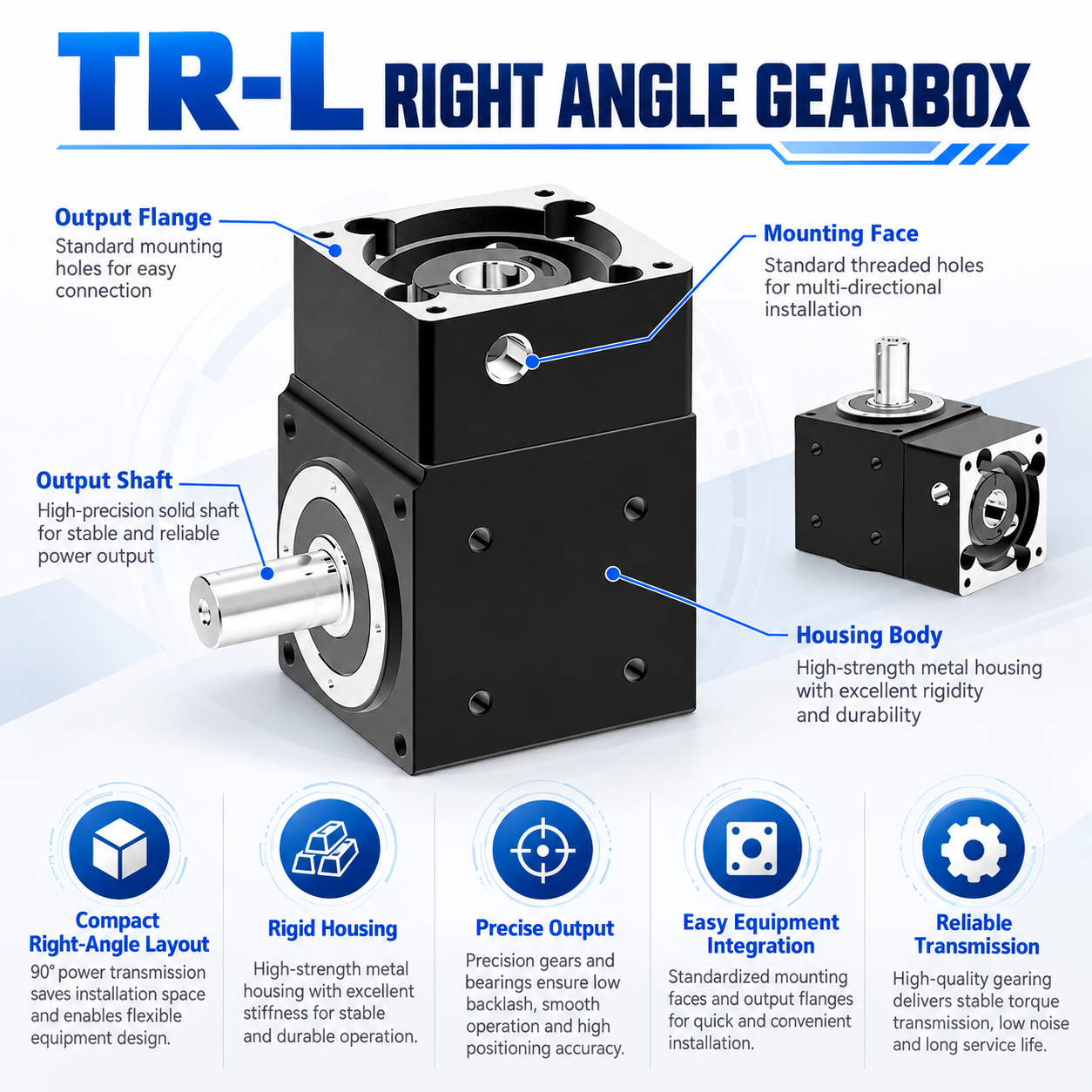

The TR-L series (TR042-L / TR060-L / TR090-L) is a 90-degree precision right-angle planetary reducer with shaft output. The compact cubic design changes transmission direction in a compact envelope for servo and stepper systems.
Construction and Specifications
Ratios 2:1 / 3:1 / 5:1 are available. TR042-L matches 50W / 100W servo or 42 stepper; TR060-L matches 200W / 400W servo or 57 stepper; TR090-L matches 750W servo or 86 stepper. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your motor model and power, the required ratio, or share the application drawing. ECHOMACH engineers support model selection and motor matching.
Typical Applications
TR-L right-angle reducers suit automation equipment, precision motion control, direction-changing transmission and compact machine designs.
Why Choose ECHOMACH
Compact cubic design with stable precision transmission, servo and stepper compatibility, fast model selection and responsive technical support for overseas buyers.
