Right-Angle Gearbox
TR-H Right-Angle Gearbox 2/3/5 Ratio Precision Hole Output
Factory Direct Sales TR-H commutator 2/3/5 ratio precision hole output Angle changer for automation equipment. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- TR042 / TR060 / TR090
- Compatible Motors

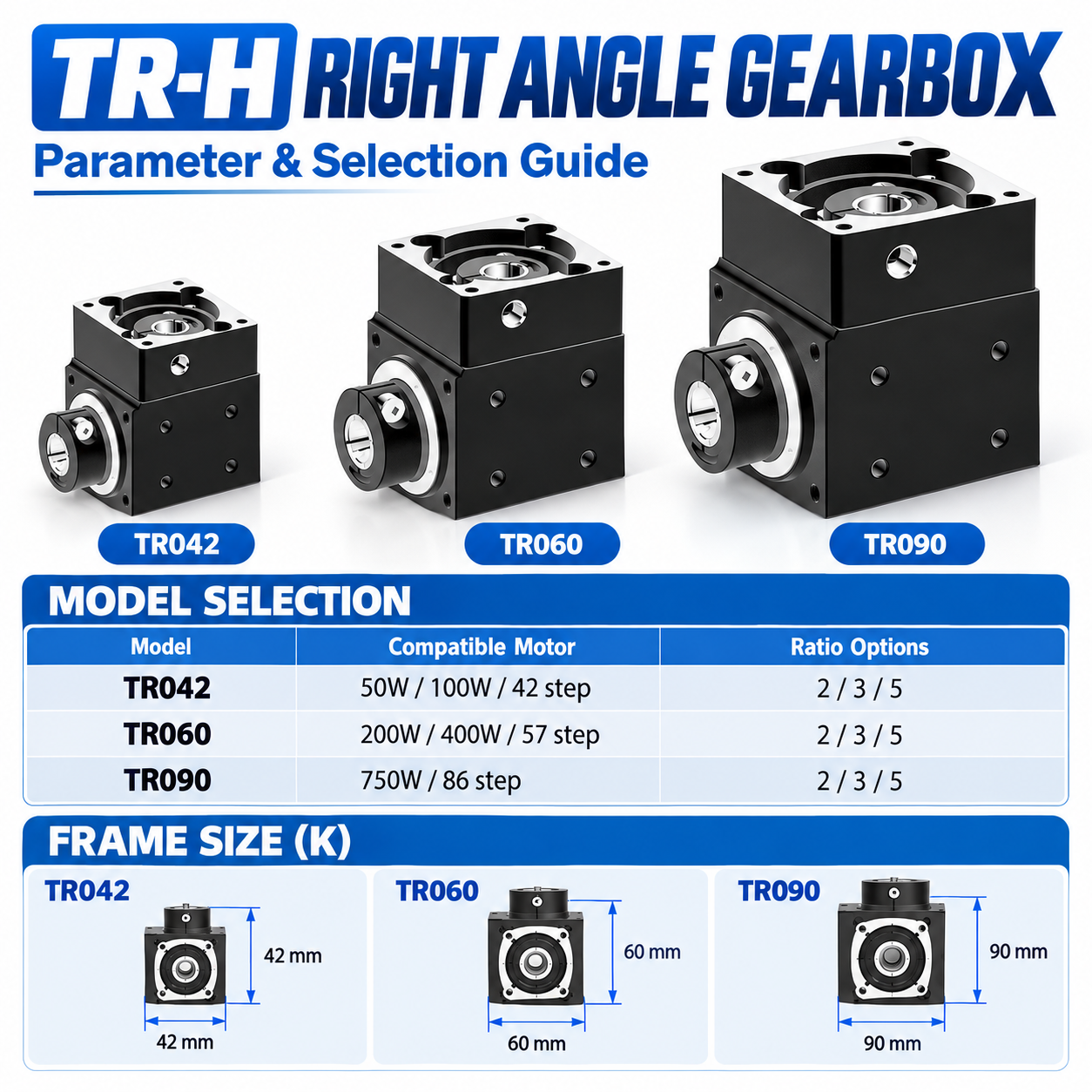

- 50W / 100W servo or 42 stepper (TR042); 200W / 400W servo or 57 stepper (TR060); 750W servo or 86 stepper (TR090)
- Ratio
- 2 / 3 / 5
- Structure
- 2 / 3 / 5 ratio, precision hole output
- Drawing

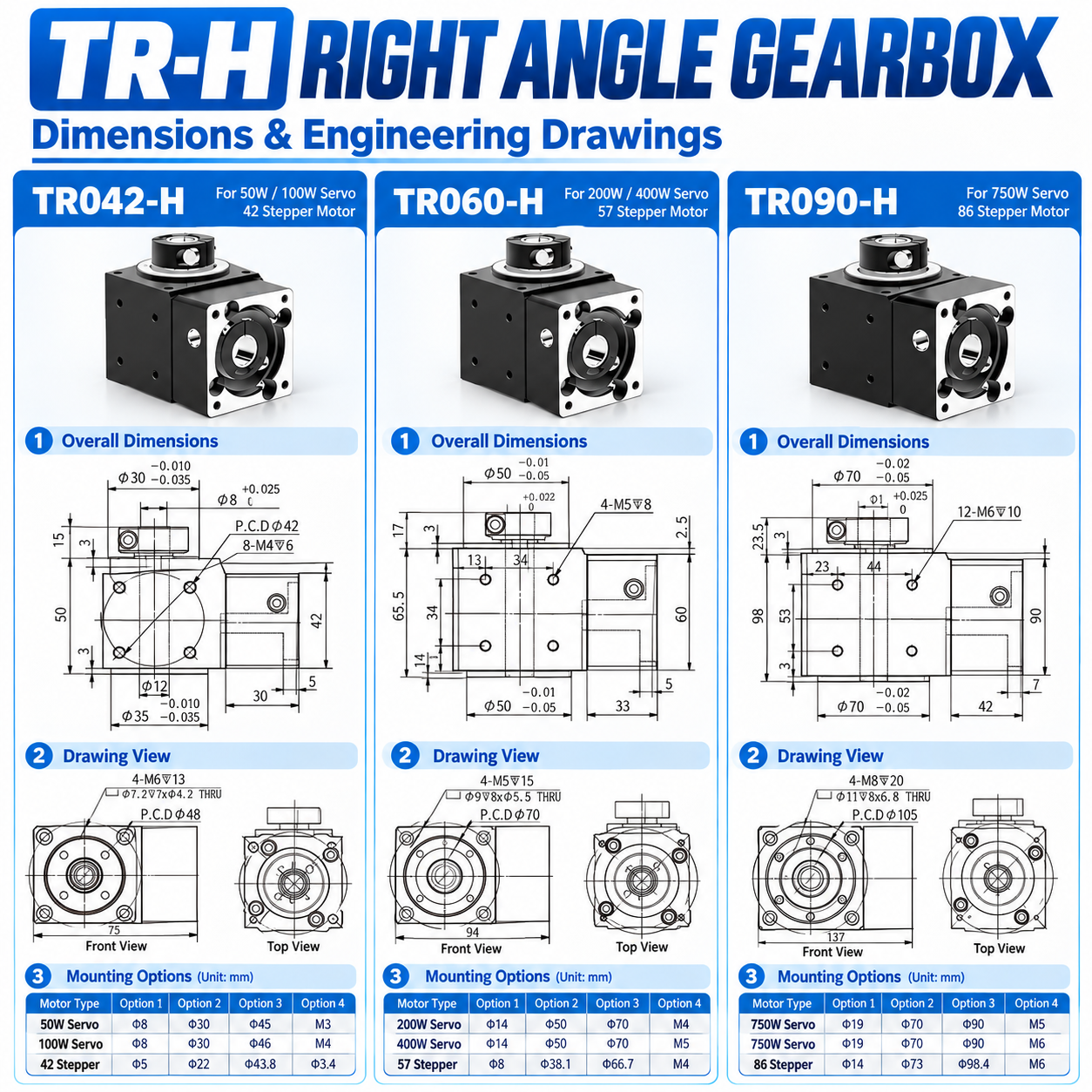

- 2D/3D drawings available on request
Product Overview

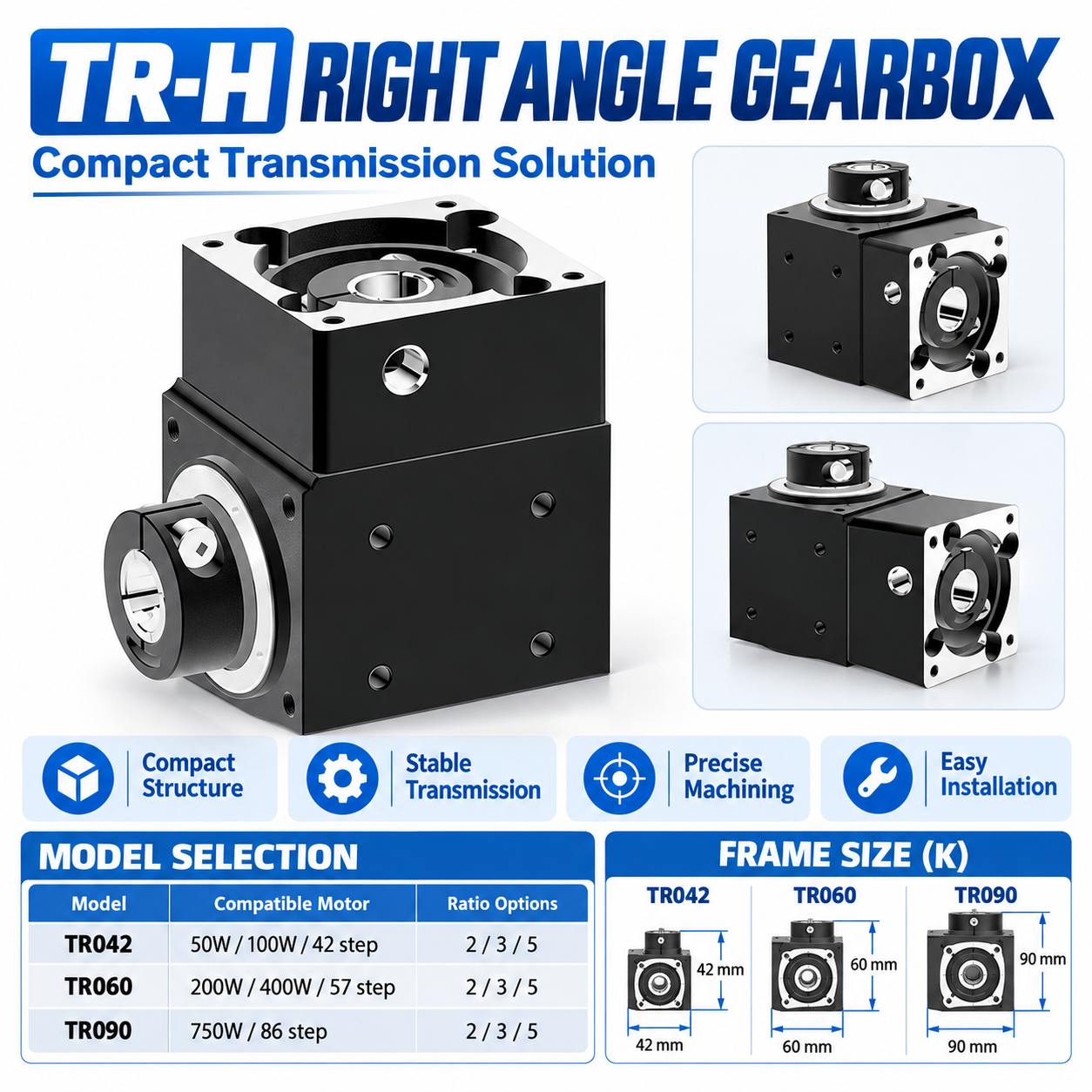

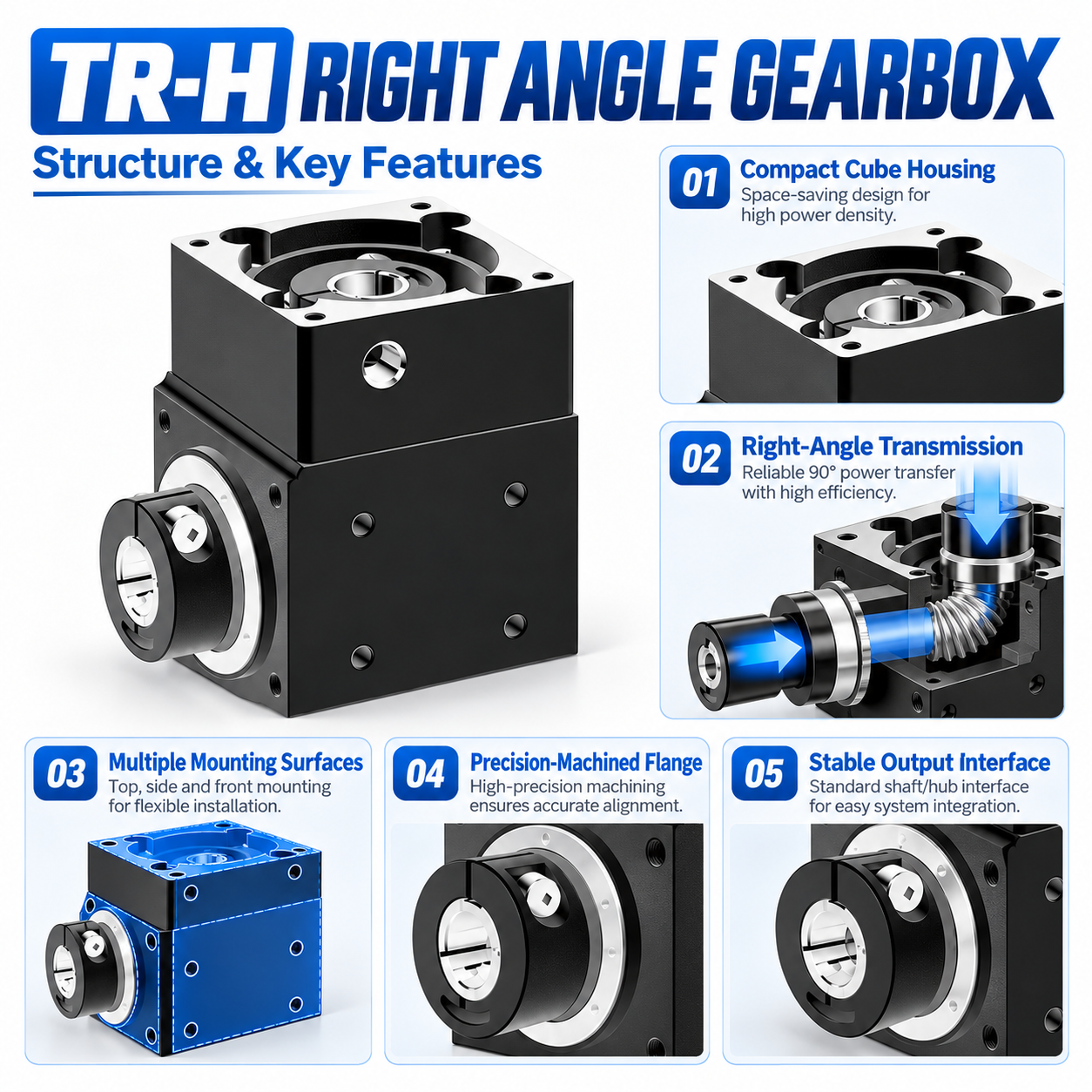

The TR-H series (TR042 / TR060 / TR090) is a precision right-angle gearbox (commutator) with hole output, sold direct from the factory. The compact cubic right-angle design changes transmission direction for automation equipment.
Construction and Specifications
Ratios 2 / 3 / 5 are available. TR042 matches 50W / 100W servo or 42 stepper with a 42 mm frame; TR060 matches 200W / 400W servo or 57 stepper with a 60 mm frame; TR090 matches 750W servo or 86 stepper with a 90 mm frame. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your motor model and power, the required ratio, or share the application drawing. ECHOMACH engineers support model selection and motor matching.
Typical Applications

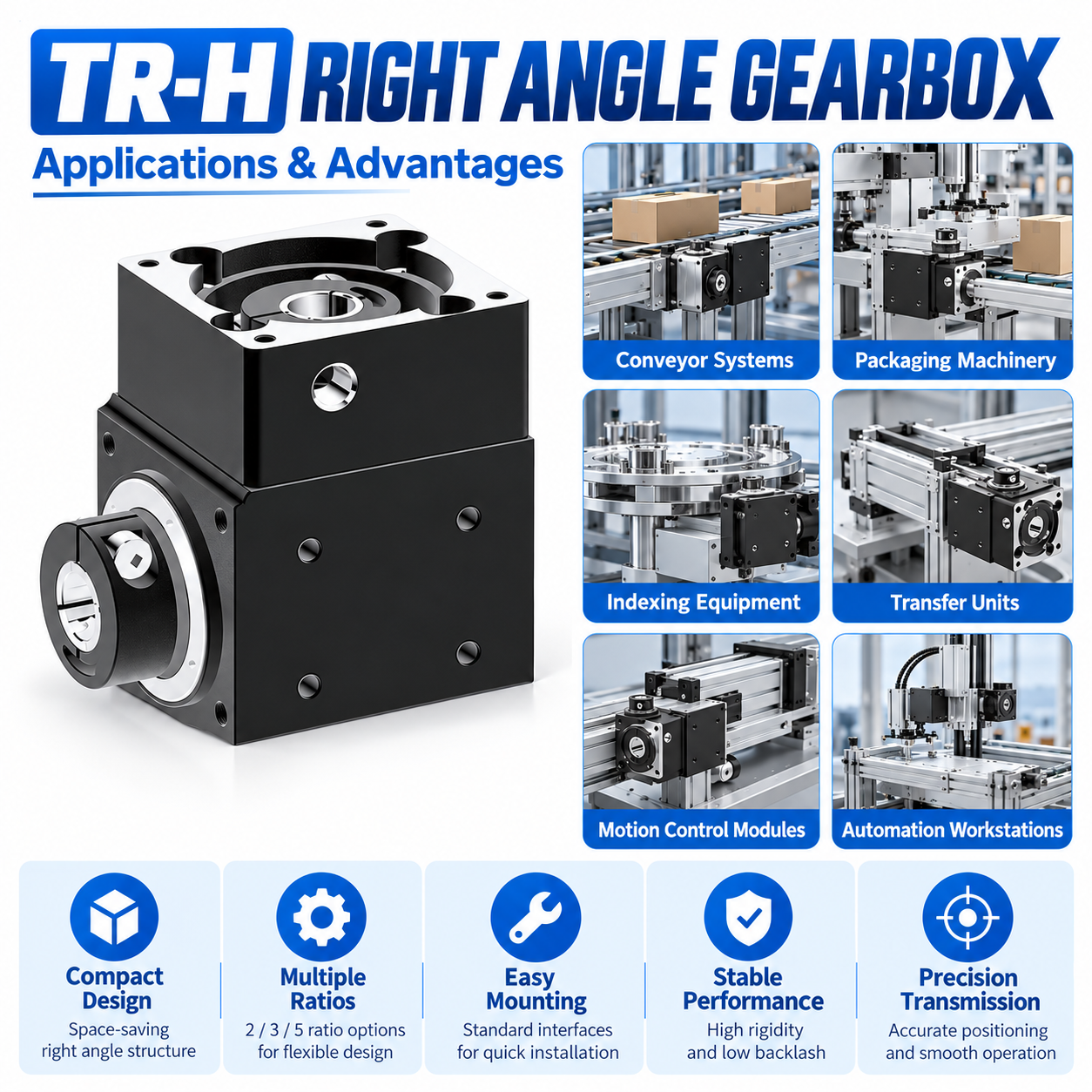

TR-H right-angle gearboxes suit automation equipment, precision indexing, direction-changing transmission and compact machine designs.
Why Choose ECHOMACH
Factory direct sales, precision machining with stable transmission, easy installation and responsive technical support for overseas buyers.
