Hollow Rotary Table
DTZ Hollow Direct-Coupled Planetary Stage
Large reduction ratio DTZ direct connection planetary 360 through-line DD motor CAM indexer hollow rotary platform. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- DTZ085 / DTZ130 / DTZ200
- Compatible Motors
- 57/86-frame stepper; 200W-750W servo
- Reduction Ratio
- 15:1 to 100:1
- Frame Size
- 60 mm to 90 mm
- Type
- Hollow Rotary Platform
- Shaft
- Hollow (pass-through)
Product Overview

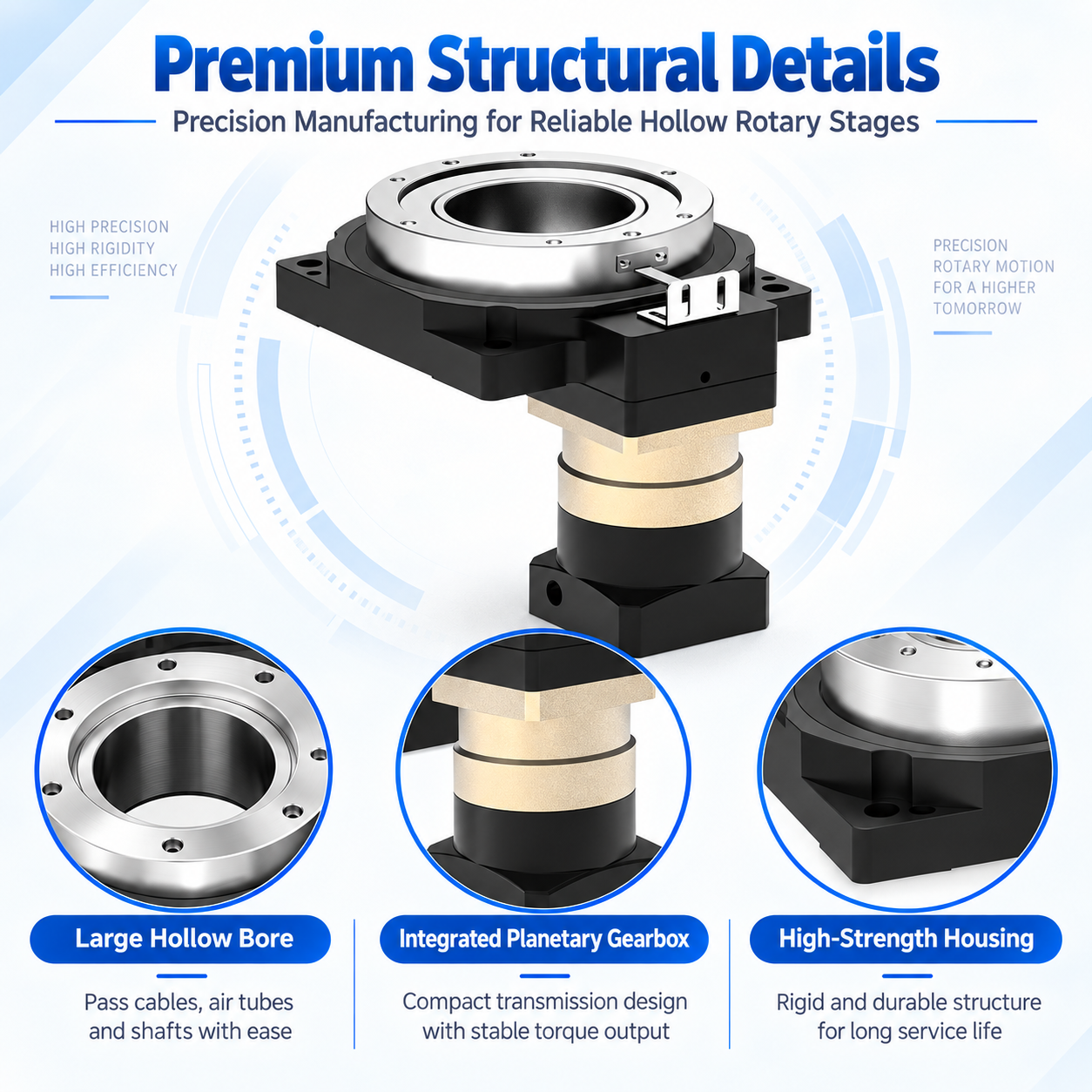

The DTZ Hollow Rotary Platform series (DTZ085 / DTZ130 / DTZ200) is designed for direct mounting of stepper or servo motors with a hollow shaft through the center of rotation. It covers frame sizes from 60 mm to 90 mm, giving automation builders a matched motion component for hollow rotary platform applications.
Construction and Specifications

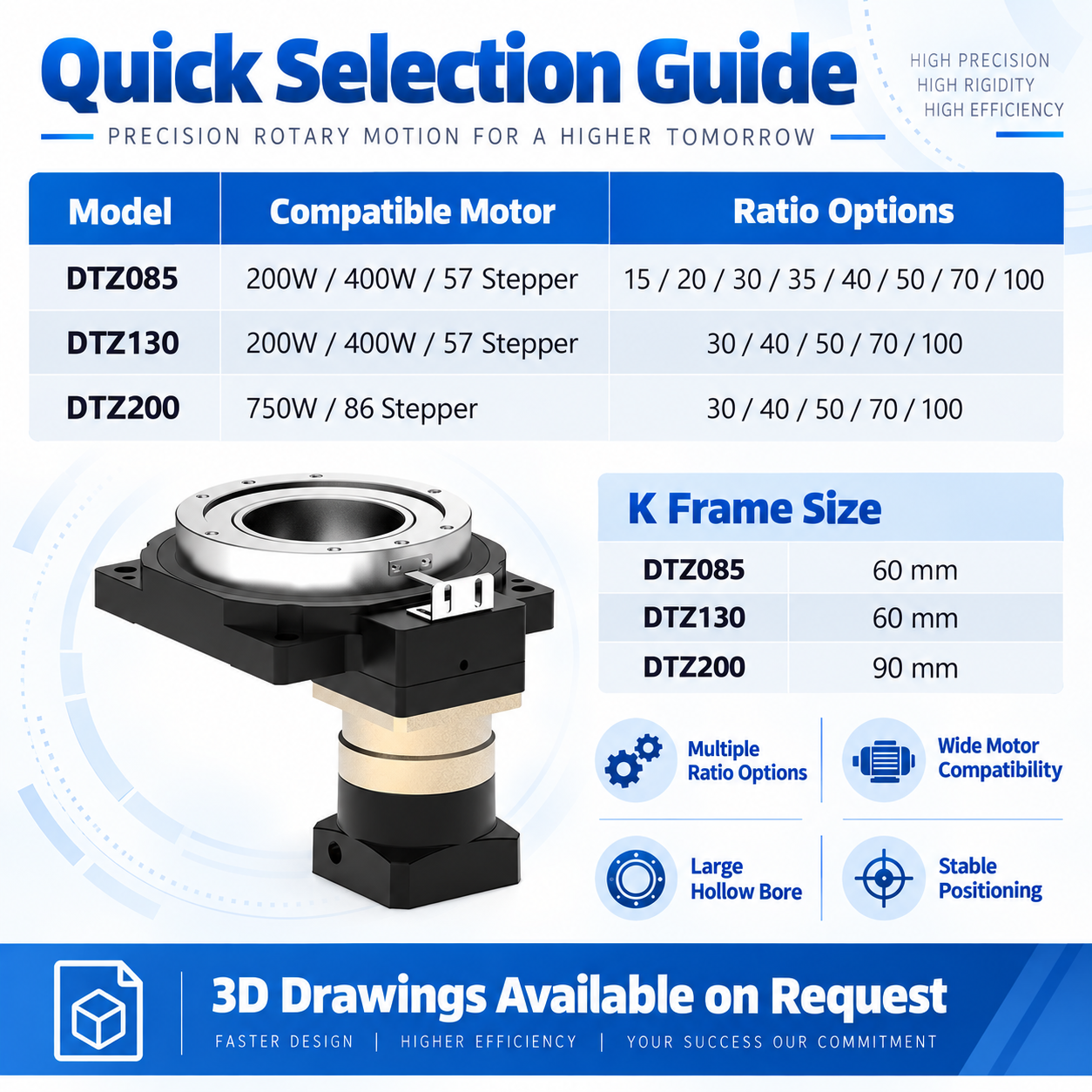

Compatible motor fits include 57/86-frame stepper; 200W-750W servo. Reduction ratios 15:1 to 100:1 are available depending on the model; frame sizes range 60 mm to 90 mm. Full dimensional drawings and the exact model configuration should be confirmed against the technical drawing. 3D drawings are available on request for integration work.
Ordering Guidance
To confirm a configuration, please provide your motor model, power and the required reduction ratio, or share the mechanical drawing of your application. ECHOMACH engineers support model selection and motor matching to speed up your sourcing.
Typical Applications
DTZ series planetary gearboxes suit industrial automation, robotics, CNC and laser equipment, packaging machinery and other precision motion applications where compact size, low backlash and high rigidity are required.
Why Choose ECHOMACH
Standard models plus OEM / ODM customization, servo motor matching, fast model selection and responsive technical support for overseas buyers.
