Hollow Rotary Table
Planetary Gear CNC Speed Reducers Precision Hollow Direct Drive Servo Motor for Robot Automation
DST direct-coupled hollow rotary stage series (DST085 / DST130) for precision automation. Direct stepper motor coupling, 18:1 ratio, compact structure, stable positioning and long service life. Full listing title: Planetary Gear CNC Compatible Speed Reducers Precision Hollow Direct Drive Servo Motor for Robot Automation ODM Product. Custom OEM / ODM available.

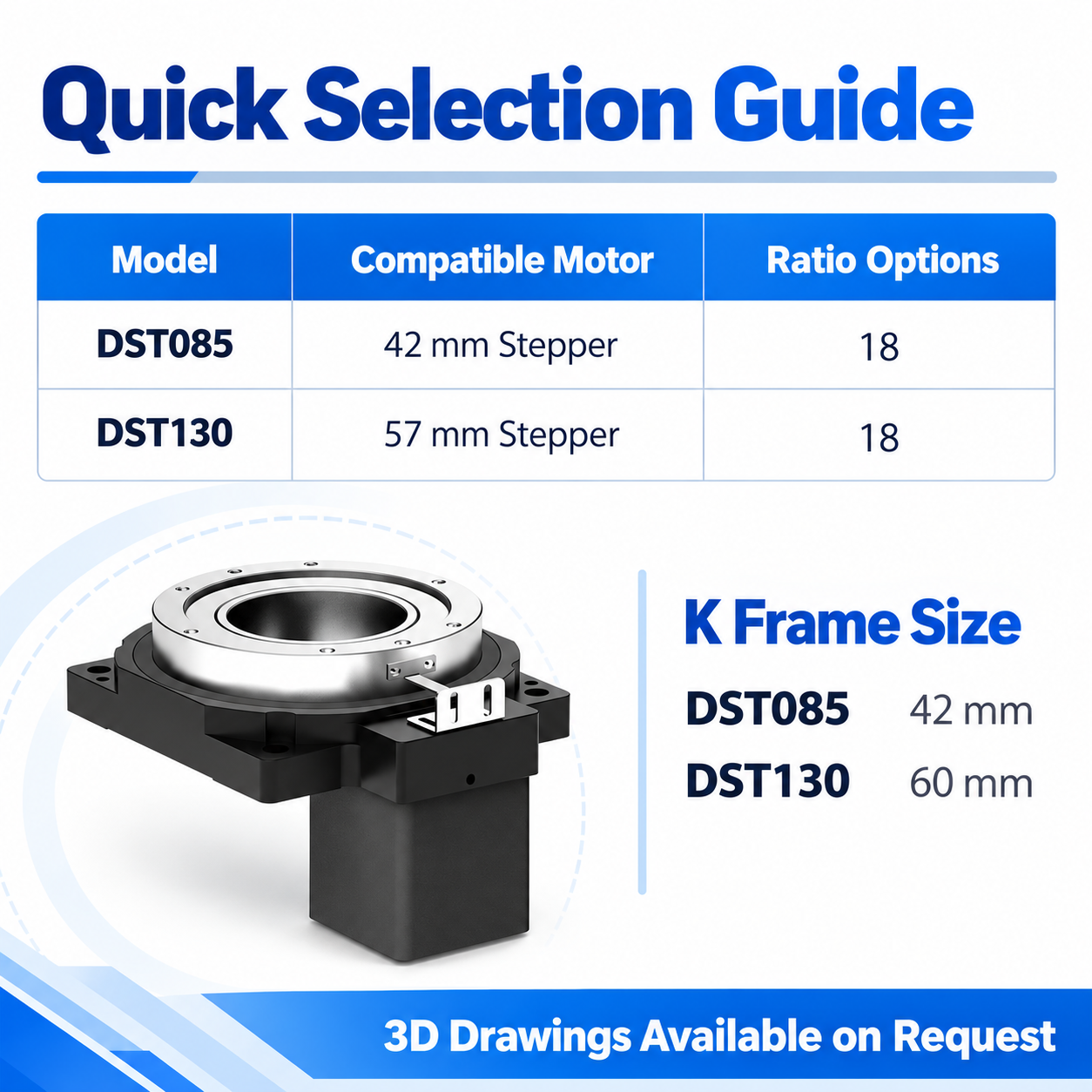

Specifications
- Series
- DST085 / DST130
- Compatible Motor
- 42 mm stepper (DST085) / 57 mm stepper (DST130)
- Ratio Options
- 18:1
- Frame Size
- DST085 42 mm / DST130 60 mm
- Structure
- Hollow direct-coupled
- Drawing
- 3D drawings available on request
Product Overview

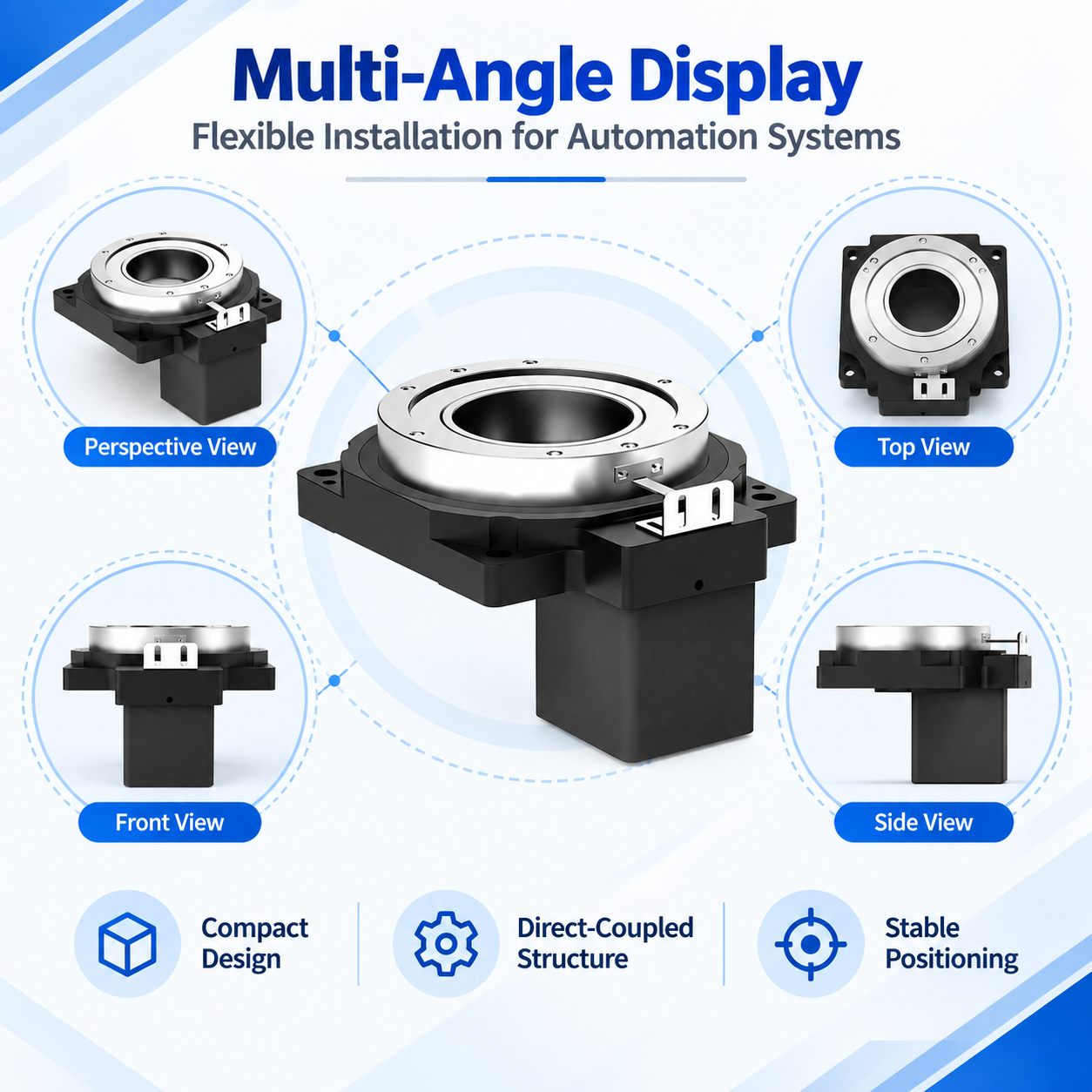

The DST series (DST085 / DST130) is a hollow direct-coupled rotary stage for precision automation. The stepper motor connects directly to the hollow rotary stage, giving compact structure, stable positioning and a long service life for indexing and positioning tasks.
Construction and Specifications

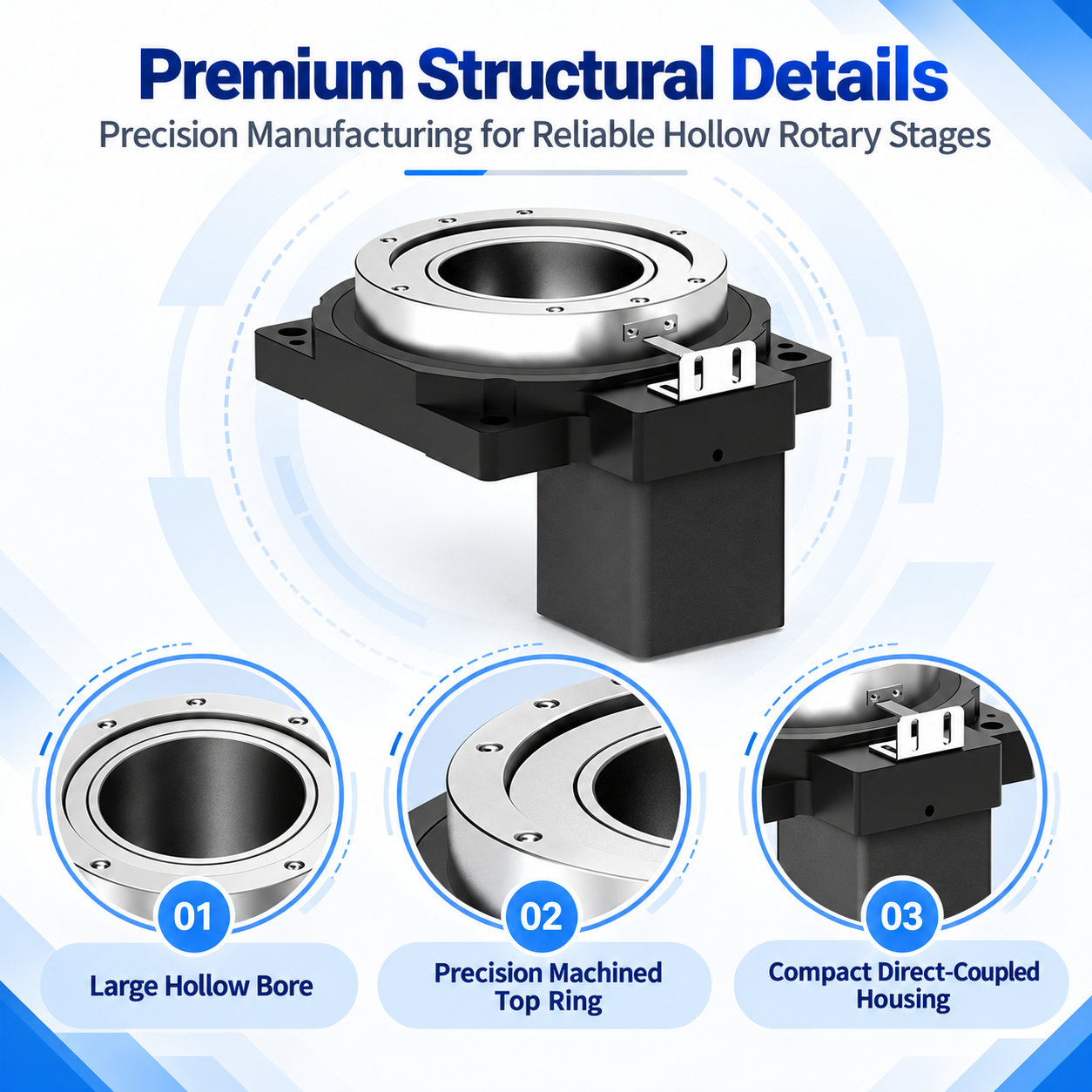

The DST stage uses a hollow direct-coupled structure. DST085 matches a 42 mm stepper motor with a 42 mm frame, while DST130 matches a 57 mm stepper motor with a 60 mm frame. Ratio options include 18:1. 3D drawings are available on request for integration work.
Ordering Guidance
To confirm a configuration, please provide your stepper motor model and the required ratio, or share the mechanical drawing of your application. ECHOMACH engineers support model selection and motor matching.
Typical Applications
DST hollow rotary stages suit robot equipment, automation systems, dispensing and packaging machines, printing and textile equipment, laboratory testers and other precision motion control applications. Custom OEM / ODM is available.
Why Choose ECHOMACH
Standard models plus OEM / ODM customization, servo and stepper motor matching, fast model selection and responsive tehnical support for overseas buyers.
