Hollow Rotary Table
DTN Hollow Rotary Table (Customized)
Full listing title: Non-standard customized high-positioning accuracy industrial indexing rotary transmission equipment for hollow rotary platforms at the source factory. DTN Hollow Rotary Table (Customized) for precision automation, custom OEM / ODM available.
Specifications

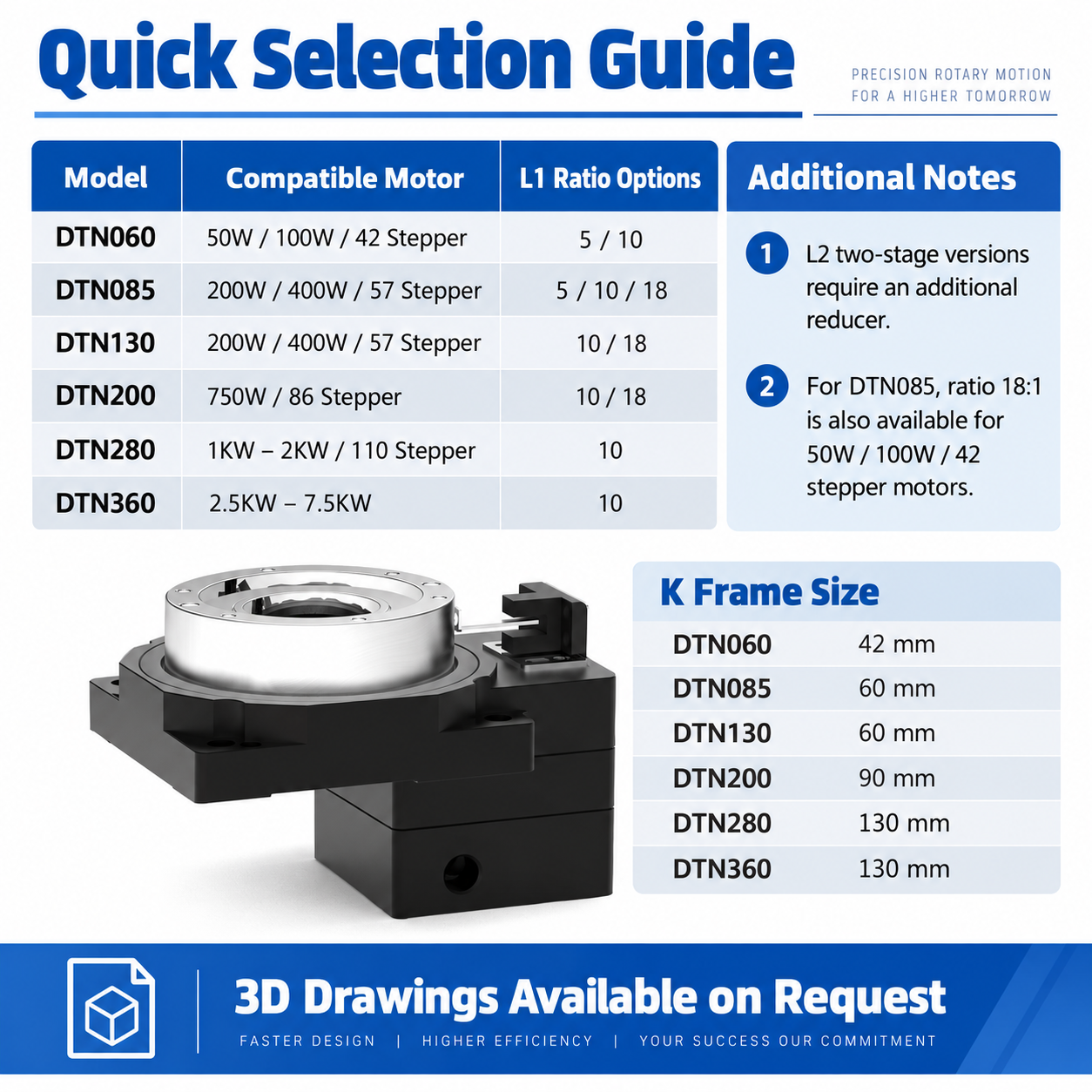

- Series
- DTN060 / DTN085 / DTN130 / DTN200 / DTN280 / DTN360
- Compatible Motors
- 42/57/86/110-frame stepper; 50W-750W+ servo
- Reduction Ratio
- From 5:1 (multi-stage options)
- Frame Size
- 42 mm to 130 mm
- Type
- Hollow rotary platform
- Drawing
- Available on request (3D, SOLIDWORKS)
Product Overview
The DTN series is a range of hollow rotary platforms for direct connection to stepper or servo motors. It covers models DTN060, DTN085, DTN130, DTN200, DTN280 and DTN360, giving automation builders a matched rotary stage for indexing and positioning across a wide torque range.
Construction and Specifications

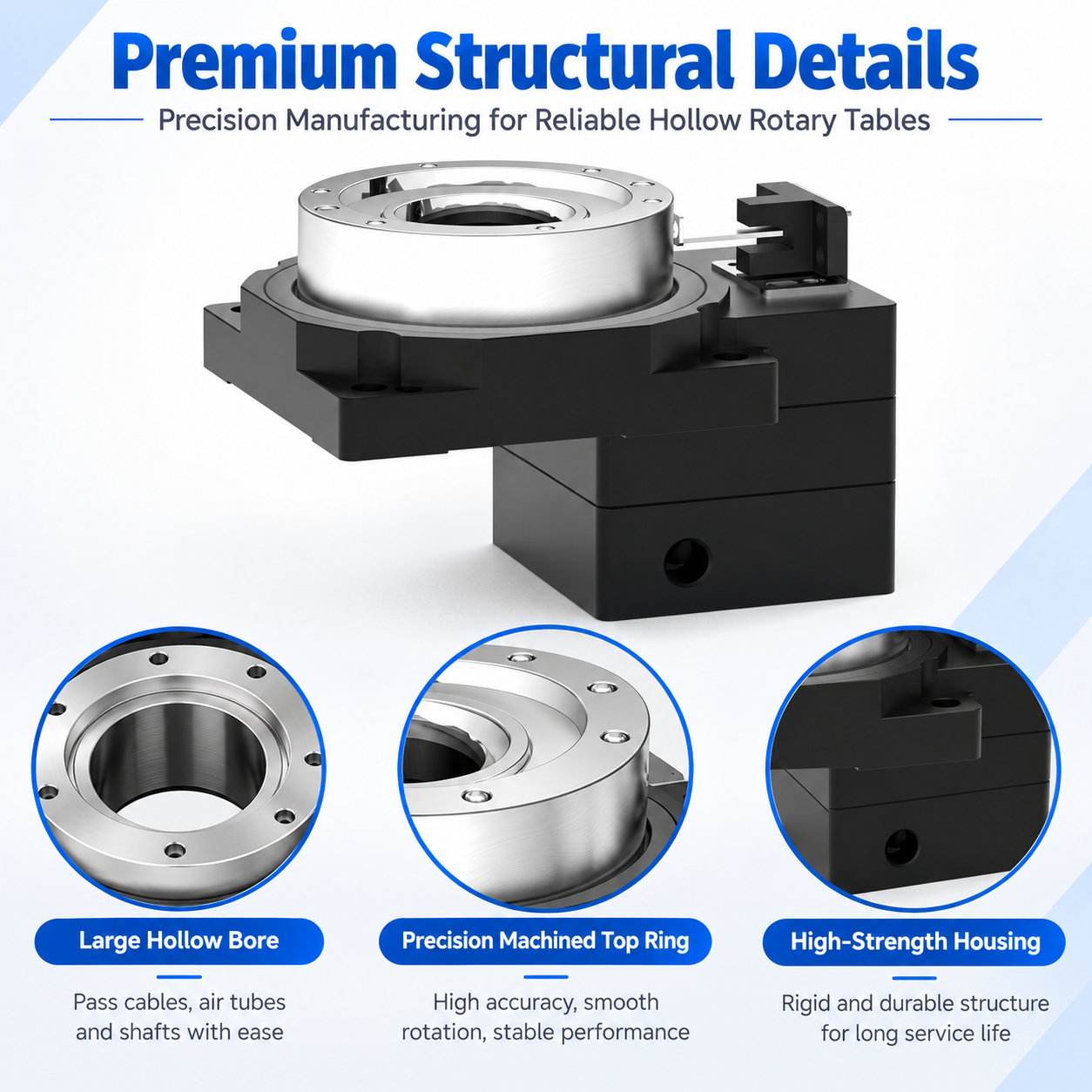

Each DTN platform uses a hollow-shaft construction so cables, air lines or tooling can pass through the center of rotation. Compatible motor fits start at 42-frame stepper and 50W/100W servo, extending to larger 57/86/110-frame and 750W-plus motors on the bigger models. Reduction ratios from 5:1 are available; consult the model drawing for the exact ratio and mounting dimensions.
Ordering Guidance
To confirm a configuration, provide your motor model (stepper or servo), power and the required reduction ratio, or share the mechanical drawing of your application. ECHOMACH engineers support model selection and motor matching.
Typical Applications

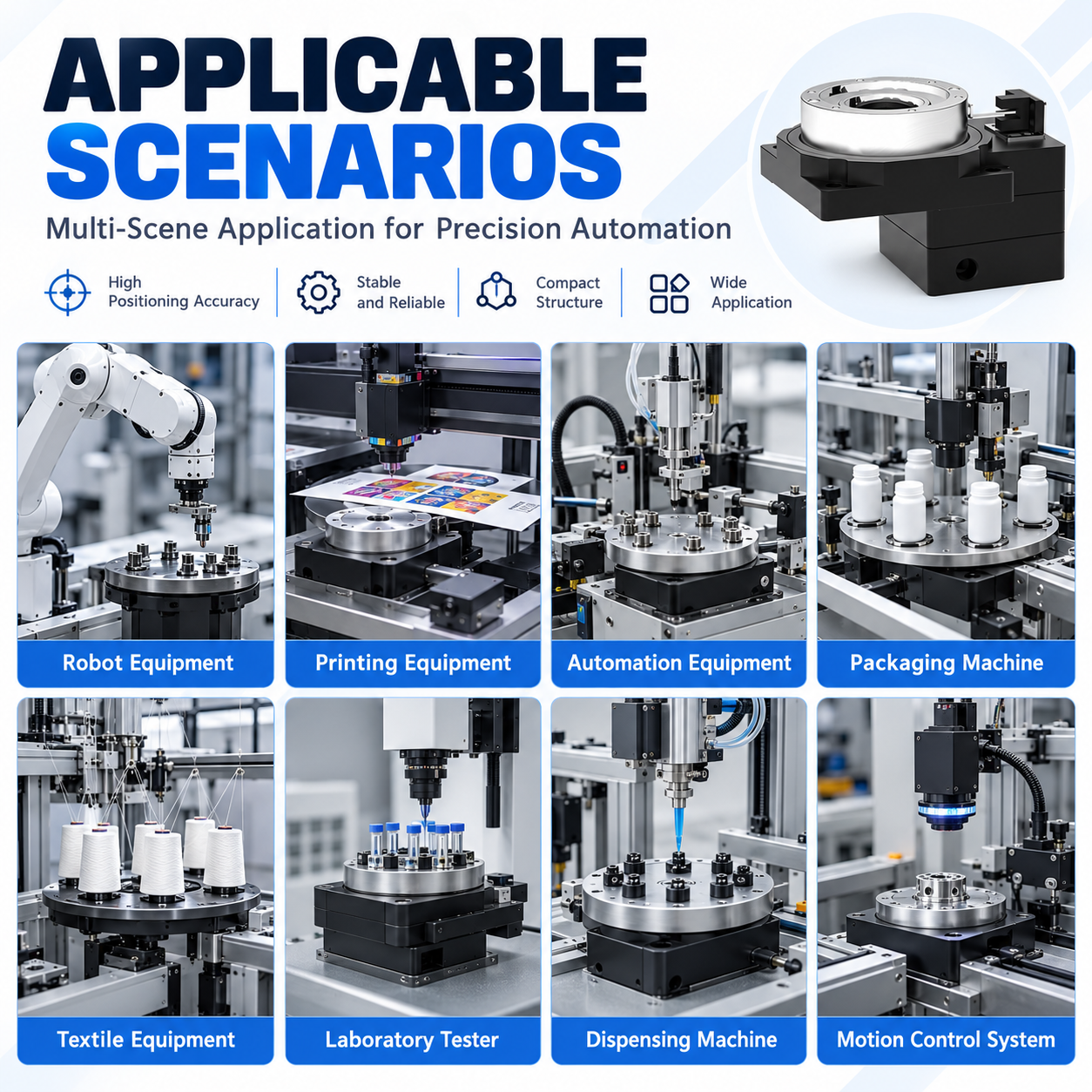

DTN series planetary gearboxes suit industrial automation, robotics, CNC and laser equipment, packaging machinery and other precision motion applications where compact size, low backlash and high rigidity are required.
Why Choose ECHOMACH
Standard models plus OEM / ODM customization, servo
