Precision Helical Planetary Gearbox
DN Small Helical Planetary Gearbox for Servo & Stepper
Small Helical Planetary Gearbox, Customizable, Cost-effective, Precision Planetary Gearbox for Servo & Stepper Motors. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- DN060 / DN090 / DN120 / DN140
- Compatible Motors
- 200W to 750W servo; 57 / 86 stepper (varies by model)
- Reduction Ratio
- One-stage 3 / 4 / 5 / 7 / 10; two-stage 15 to 100
- Features
- small size, cost-effective, customizable
- Drawing
- 2D/3D drawings available on request
Product Overview

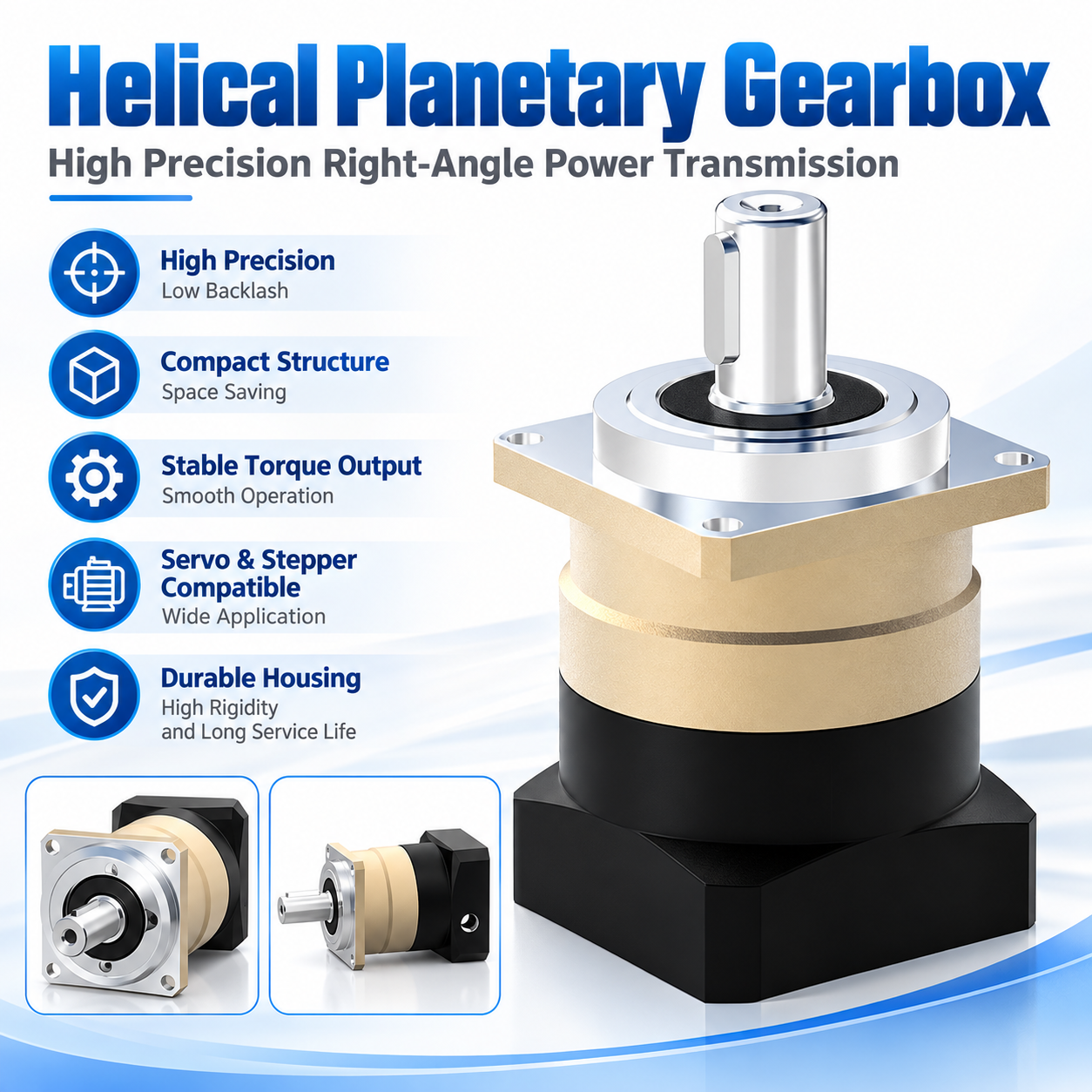

The DN series (DN060 / DN090 / DN120 / DN140) is a small, cost-effective helical planetary gearbox for servo and stepper motors. Its compact size suits space-limited precision drive designs, and configurations are customizable.

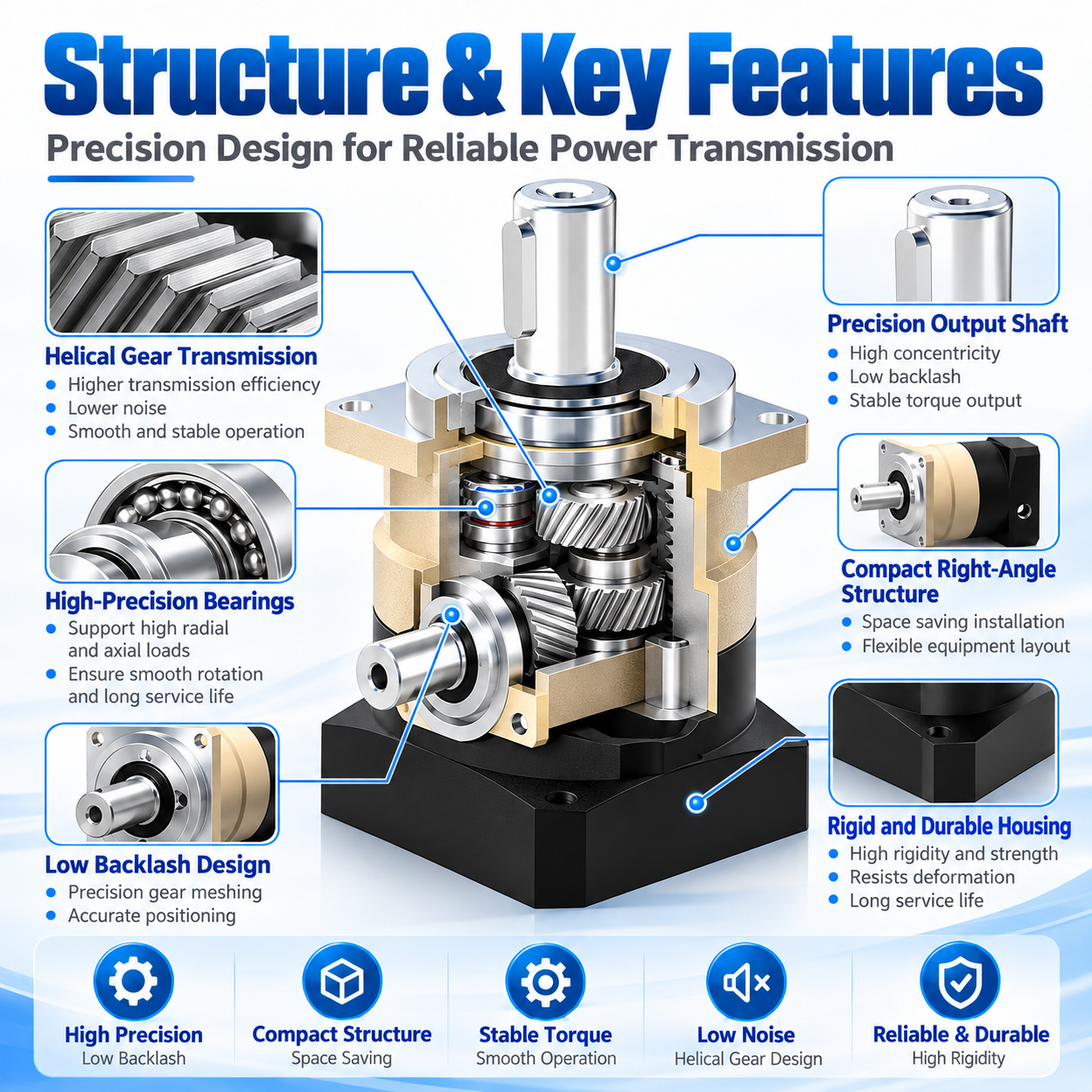

Construction and Specifications

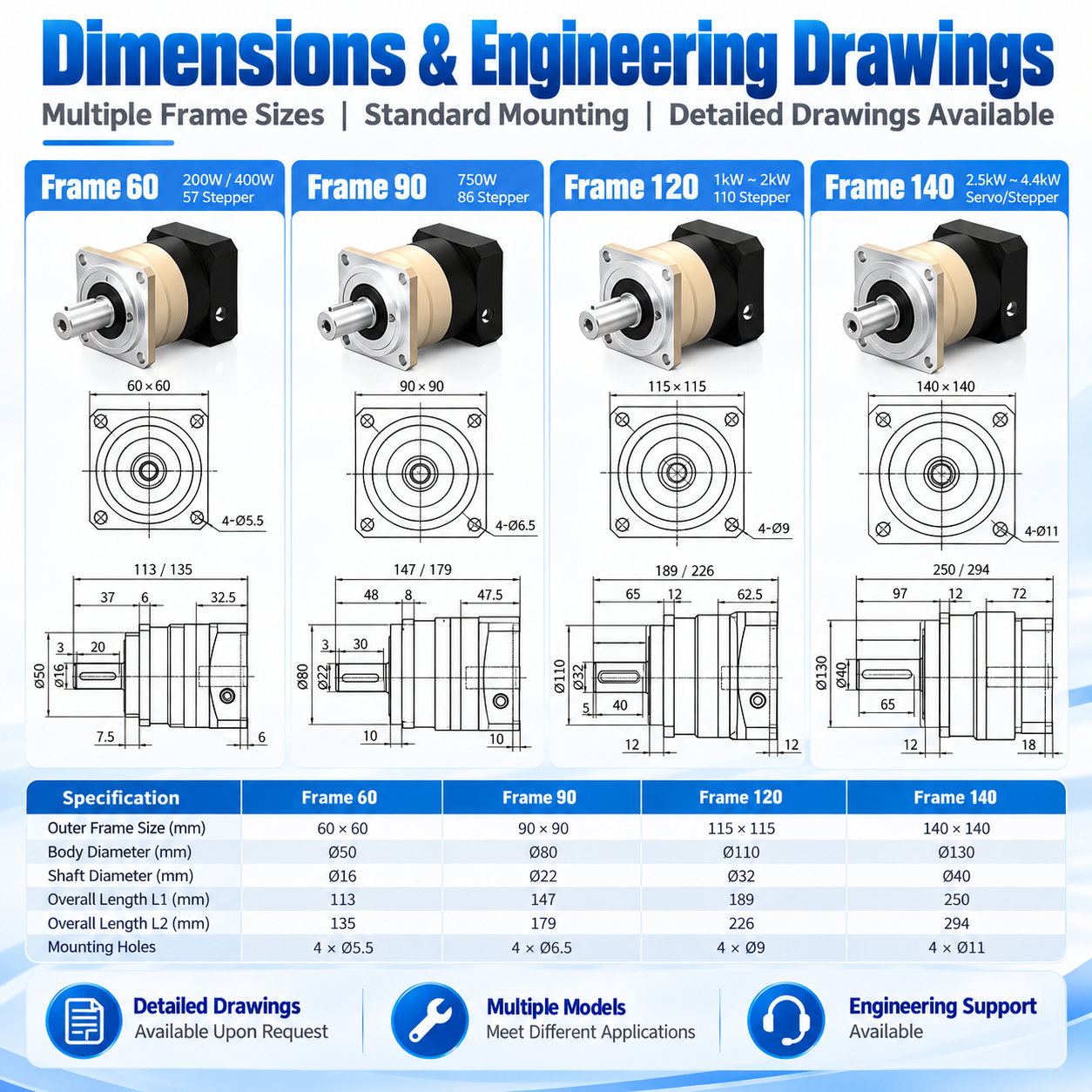

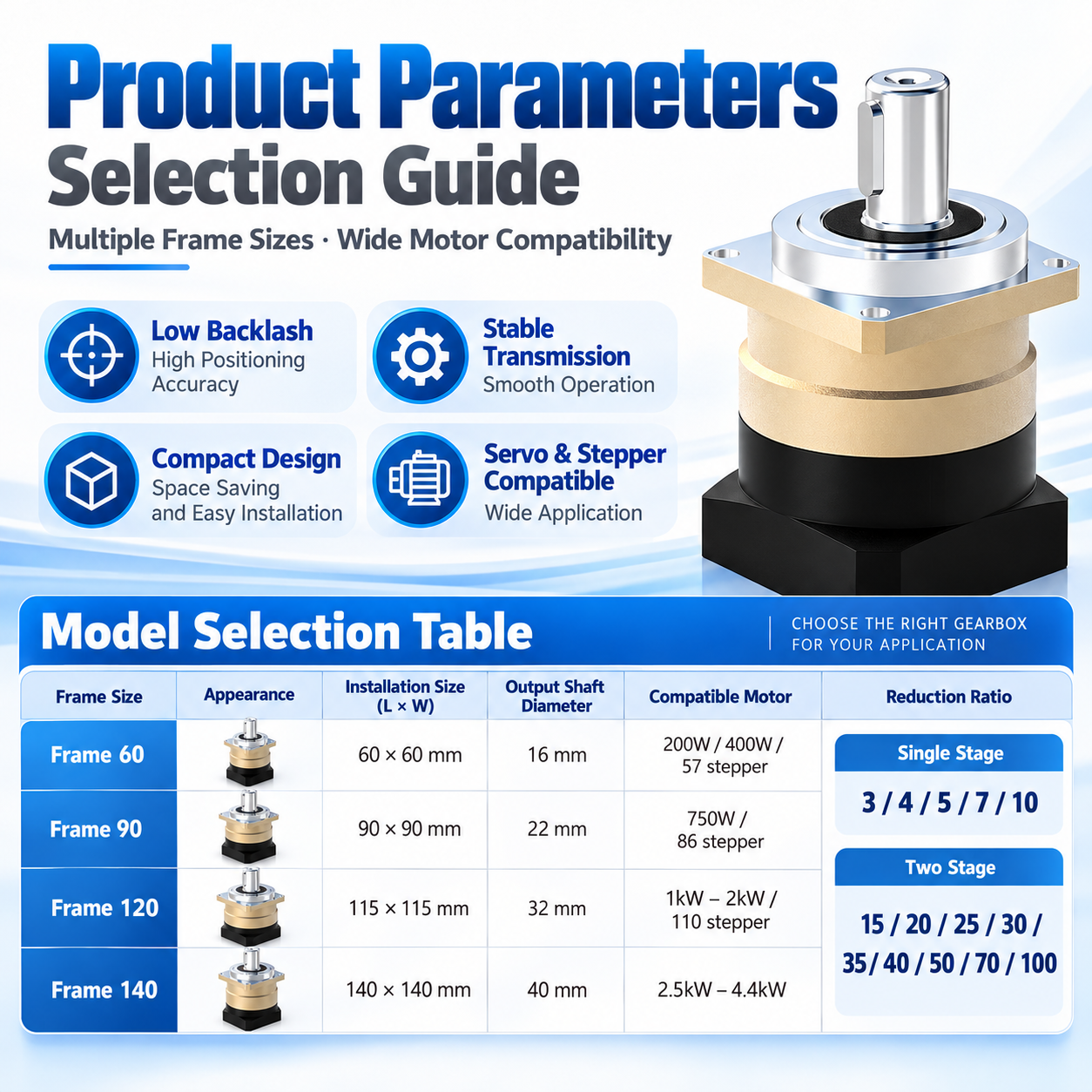

DN models match 200W to 750W servo motors and 57 / 86 stepper motors, with one-stage ratios 3 / 4 / 5 / 7 / 10 and two-stage ratios 15 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100. Frame sizes range from 60 mm to 140 mm. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your servo or stepper motor model and power, the required reduction ratio, or share the application drawing. ECHOMACH engineers support model selection and motor matching.
Typical Applications
DN planetary gearboxes suit servo and stepper drive systems, small automation equipment, electronics manufacturing and precision motion applications.
Why Choose ECHOMACH
Cost-effective small-frame gearboxes, customizable configurations, fast model selection and responsive technical support for overseas buyers.
