Horizontal Hollow Rotary Table
Precision Horizontal Hollow Rotary Platform for DD Motor Replacement
Precision Horizontal Hollow Rotary Platform, Replacement for DD Motor, Automatic Rotary Worktable, Custom Processing Available. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- DK060 / DK110 / DK150
- Compatible Motors
- 50W/100W servo or 42 stepper; 200W/400W servo or 57 stepper; 750W servo or 86 stepper
- Reduction Ratio
- 10:1
- Frame Size
- 45 mm to 90 mm
- Structure
- Hollow bore, compact horizontal
- Drawing
- 2D/3D drawings available on request
Product Overview

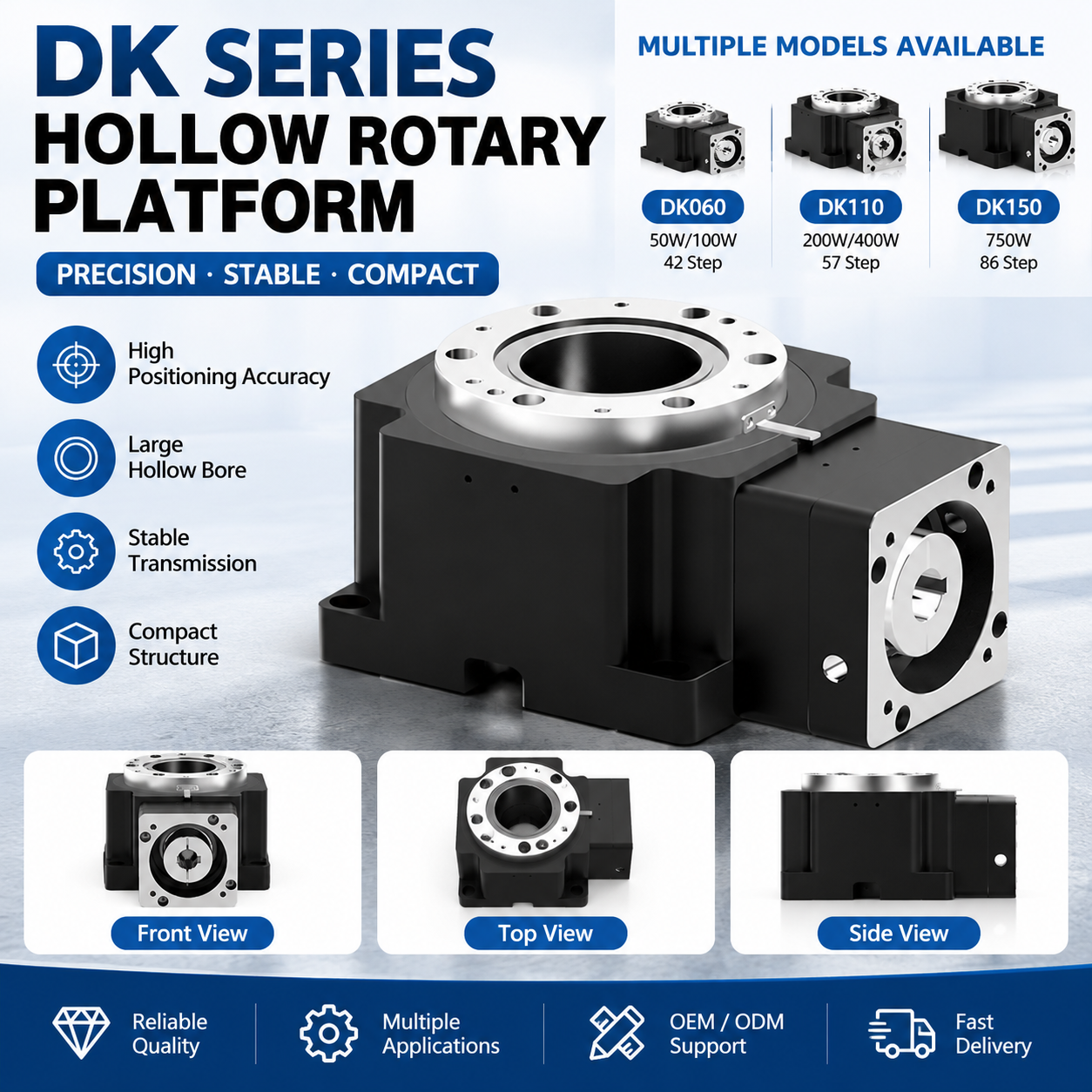

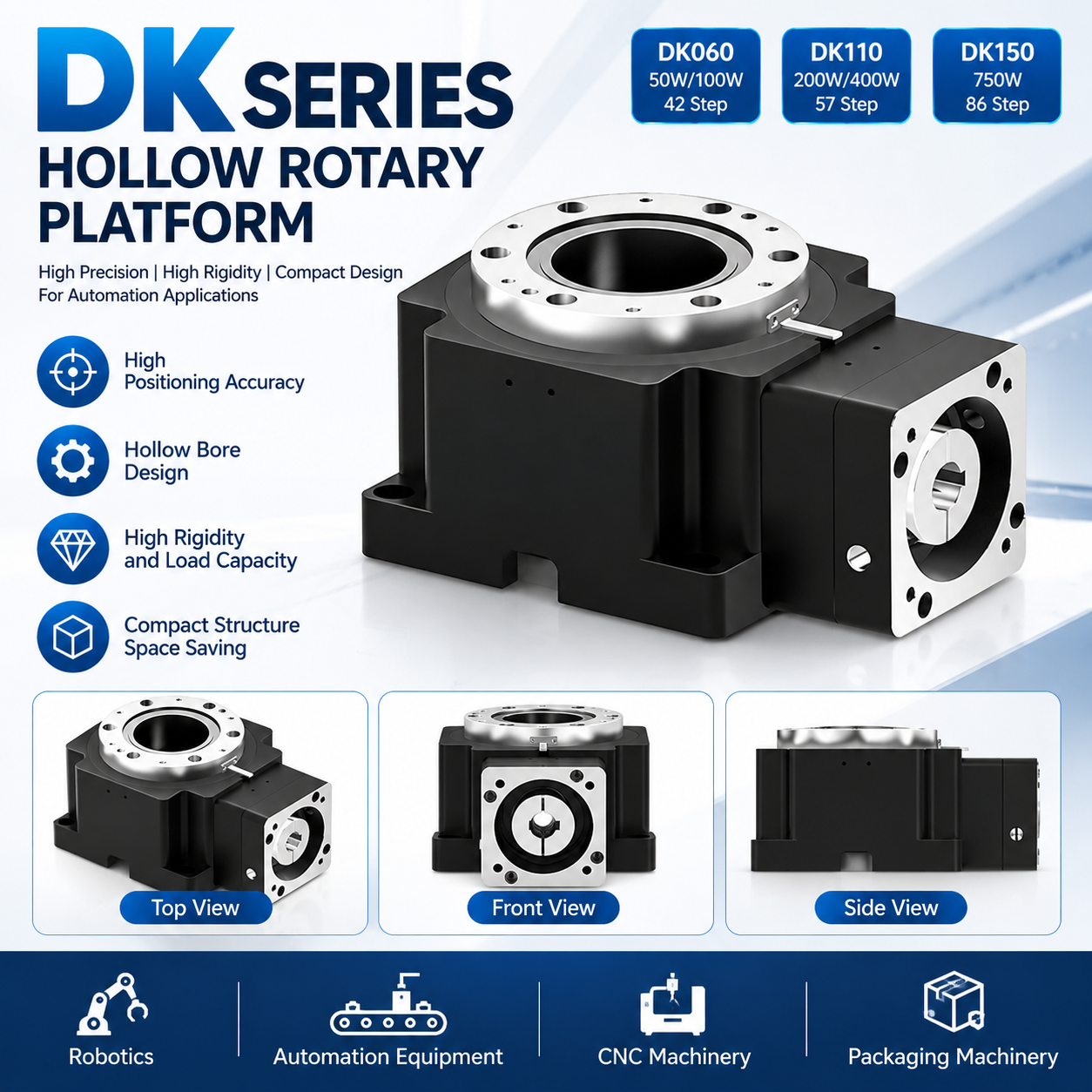

The DK series (DK060 / DK110 / DK150) is a precision horizontal hollow rotary platform for precision indexing and rotary positioning, designed for servo and stepper motor systems in automation.
Construction and Specifications

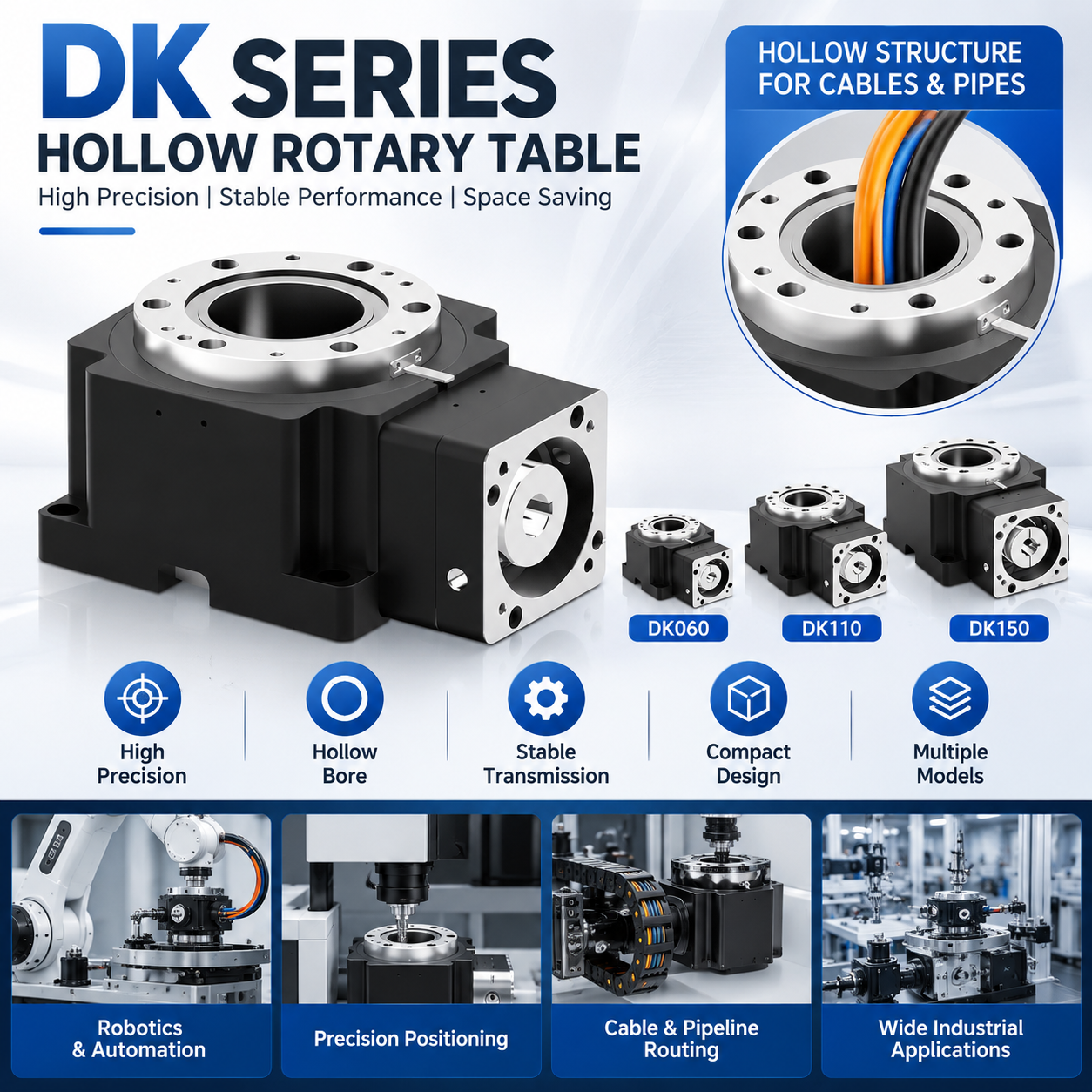

The DK platform features a large hollow bore for cable, air and shaft routing, with a compact rigid structure. Compatible motor fits: 50W/100W servo or 42 stepper; 200W/400W servo or 57 stepper; 750W servo or 86 stepper. Reduction ratio 10:1; frame sizes 45 mm to 90 mm. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your servo or stepper motor model and flange size, the required reduction ratio, or share the application drawing. ECHOMACH engineers support model selection and motor matching.
Typical Applications
DK rotary platforms suit CNC machine tools, inspection and testing equipment, automation equipment, electronics assembly, rotary indexing stations and packaging systems.
Why Choose ECHOMACH
Standard models plus OEM / ODM customization, servo and stepp
er motor matching, fast model selection and responsive technical support for overseas buyers.
