Precision Helical Planetary Gearbox
DE Source Factory Helical Planetary Reducer
Source Factory | Helical Planetary Reducer, Custom Machining, On-demand Design & Production, Non-standard Available. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- DE060 / DE090 / DE120 / DE140
- Compatible Motors
- 200W to 750W servo; 57 / 86 stepper (varies by model)
- Reduction Ratio
- One-stage 3 / 4 / 5 / 7 / 10; two-stage 15 to 100
- Features
- source factory, on-demand design and production
- Drawing
- 2D/3D drawings available on request
Product Overview

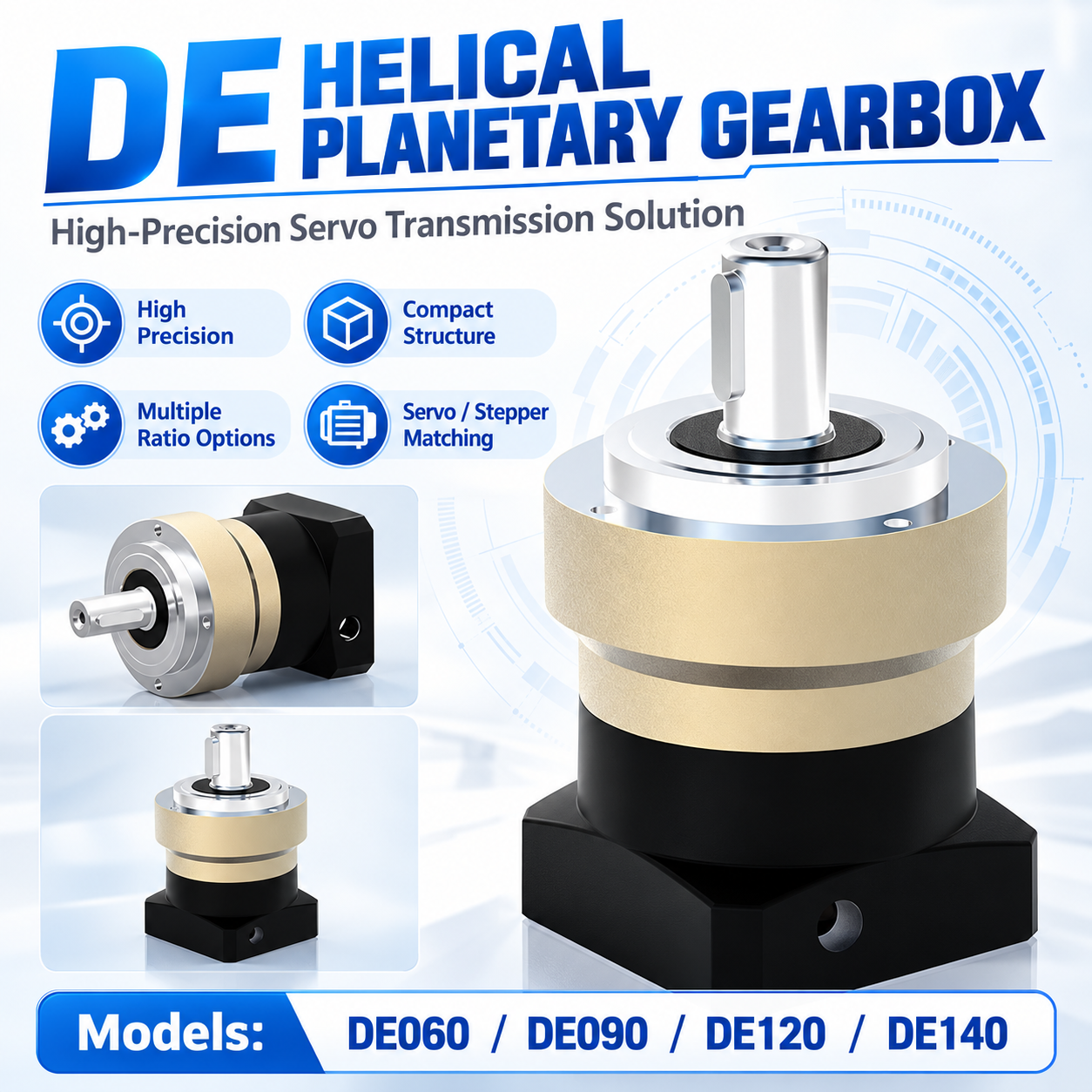

The DE series (DE060 / DE090 / DE120 / DE140) is a helical planetary reducer supplied directly from the source factory. Custom machining and on-demand design and production support non-standard requirements.

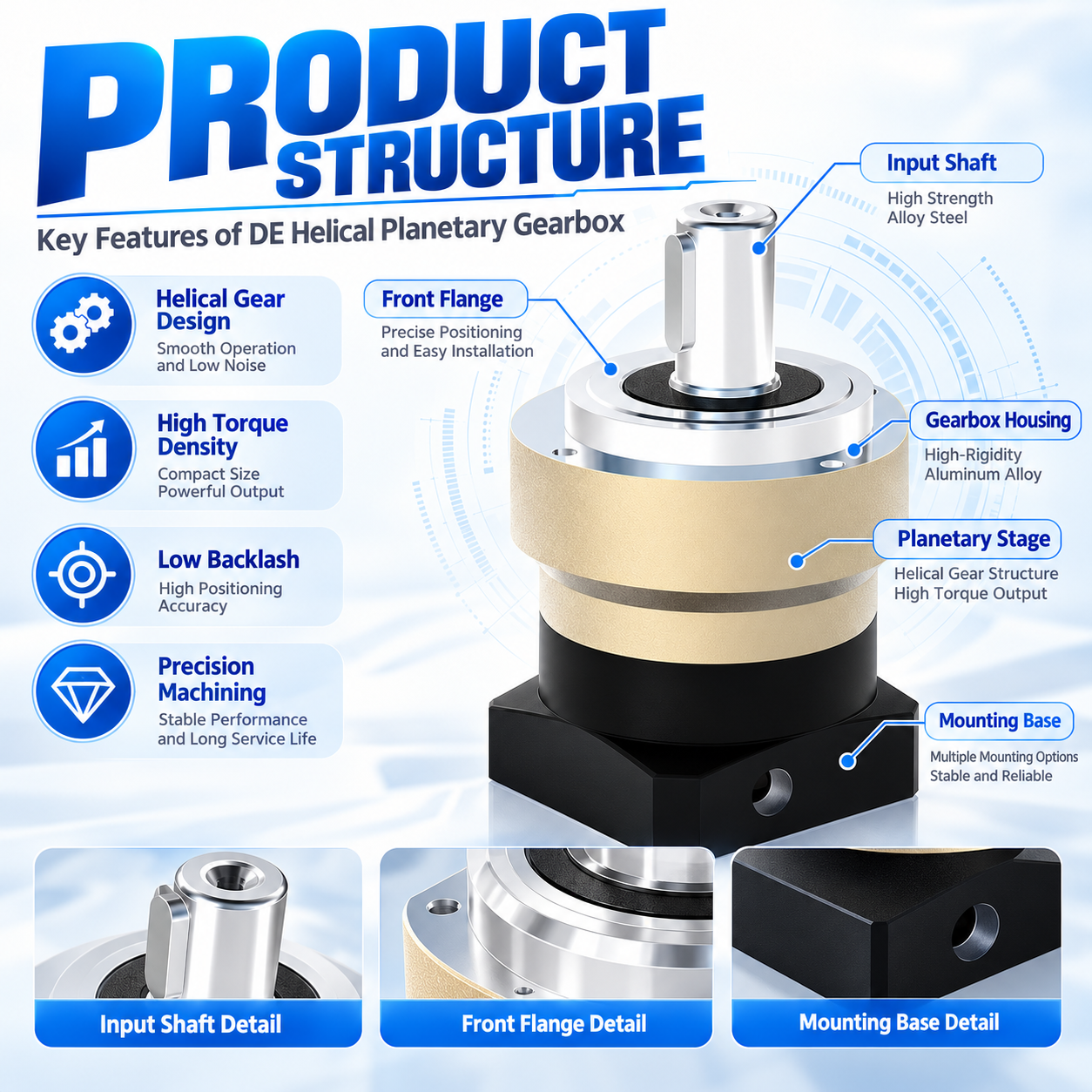

Construction and Specifications

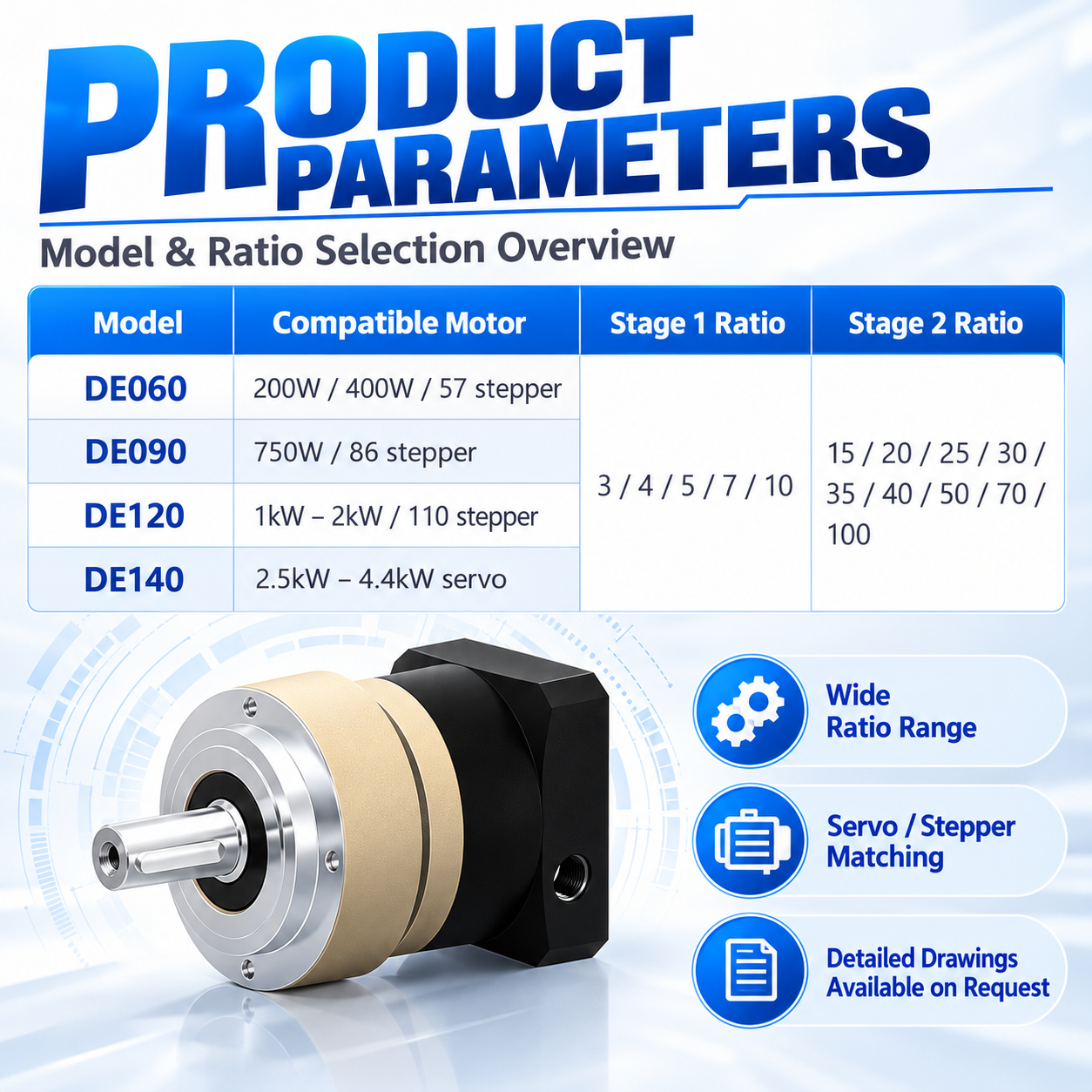

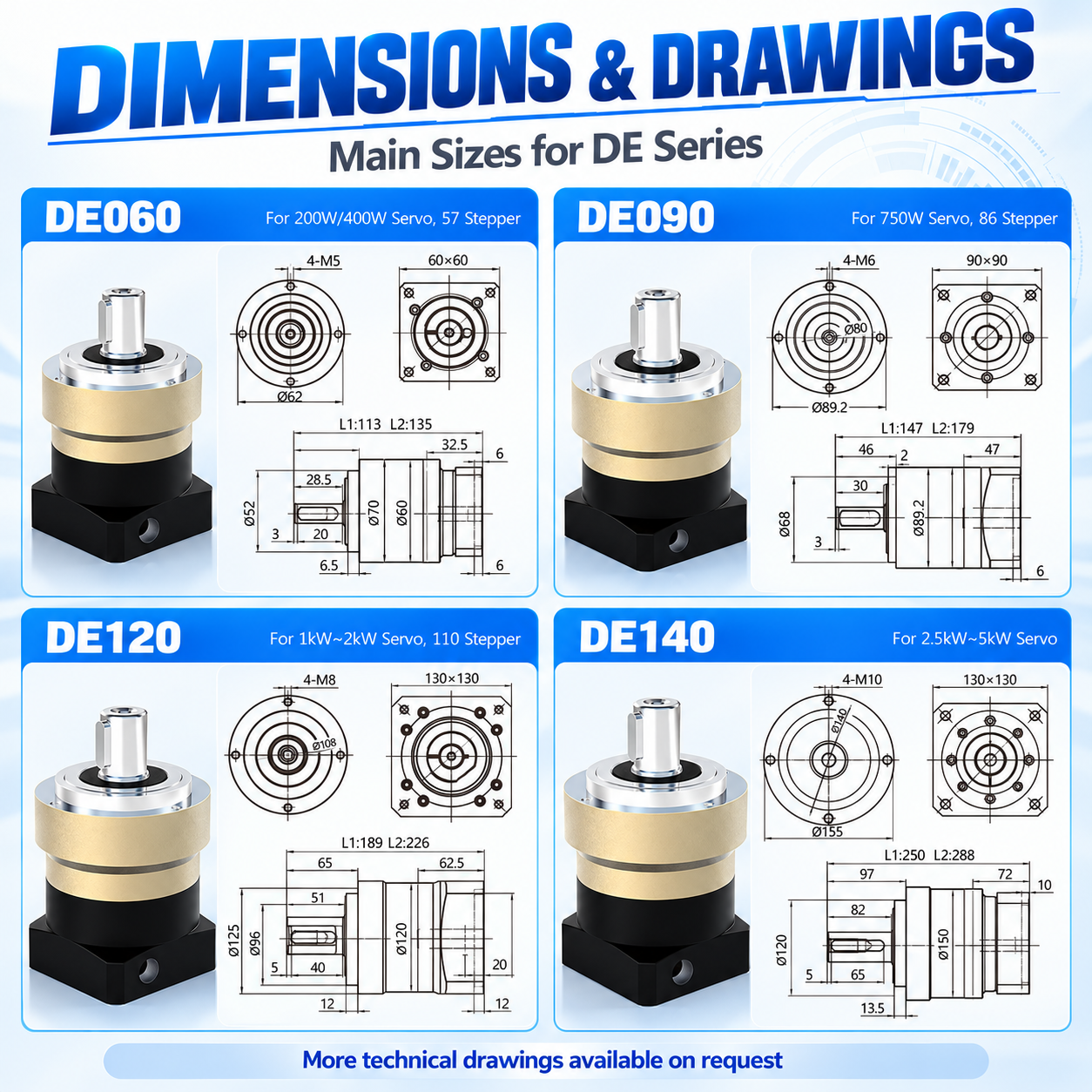

DE models match 200W to 750W servo motors and 57 / 86 stepper motors, with one-stage ratios 3 / 4 / 5 / 7 / 10 and two-stage ratios 15 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100. Frame sizes range from 60 mm to 140 mm. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your motor model and power, the required ratio, or share the application drawing. ECHOMACH engineers support model selection, on-demand design and non-standard production.
Typical Applications
DE helical planetary reducers suit servo systems, automation equipment, machine tools and precision transmission applications.
Why Choose ECHOMACH
Source factory supply, on-demand design and production, non-standard options available and responsive technical support for overseas buyers.
