Precision Helical Planetary Gearbox
DBR 90 Degree Right-Angle Helical Planetary Gearbox
90° Right-Angle Helical Planetary Gearbox, Custom Machining by Original Factory, Complete Specifications. Standard and custom configurations available; OEM / ODM customization supported.
Specifications
- Series
- DBR040 / DBR060 / DBR090 / DBR120 / DBR140 / DBR180
- Compatible Motors

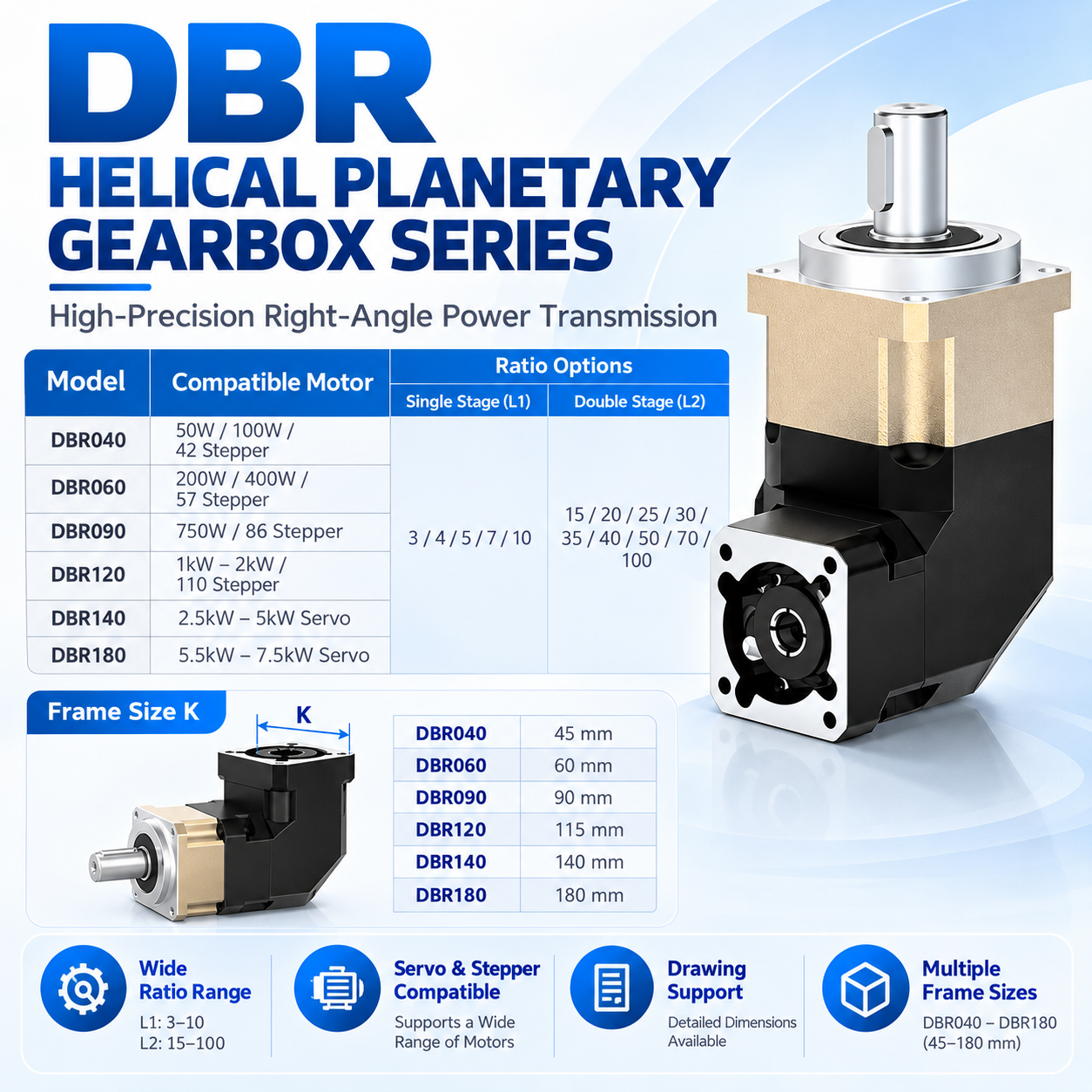

- 50W to 750W servo; 42 / 57 / 86 stepper (varies by model)
- Reduction Ratio
- One-stage 3 / 4 / 5 / 7 / 10; two-stage 15 to 100
- Features
- 90° right-angle output, complete specifications
- Drawing

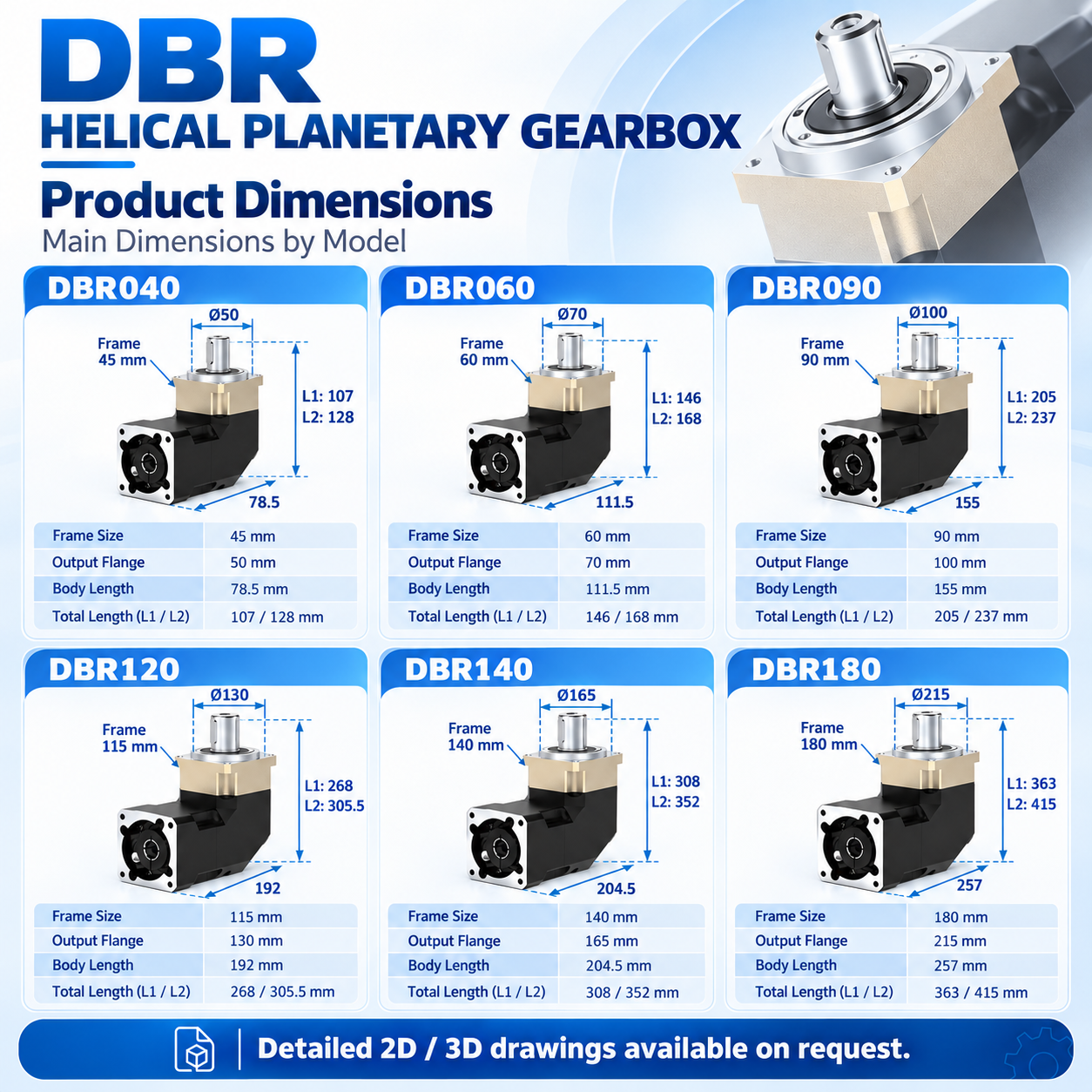

- 2D/3D drawings available on request
Product Overview
The DBR series (DBR040 / DBR060 / DBR090 / DBR120 / DBR140 / DBR180) is a 90-degree right-angle helical planetary gearbox produced with custom machining by the original factory. The right-angle layout saves installation space in compact machine designs.

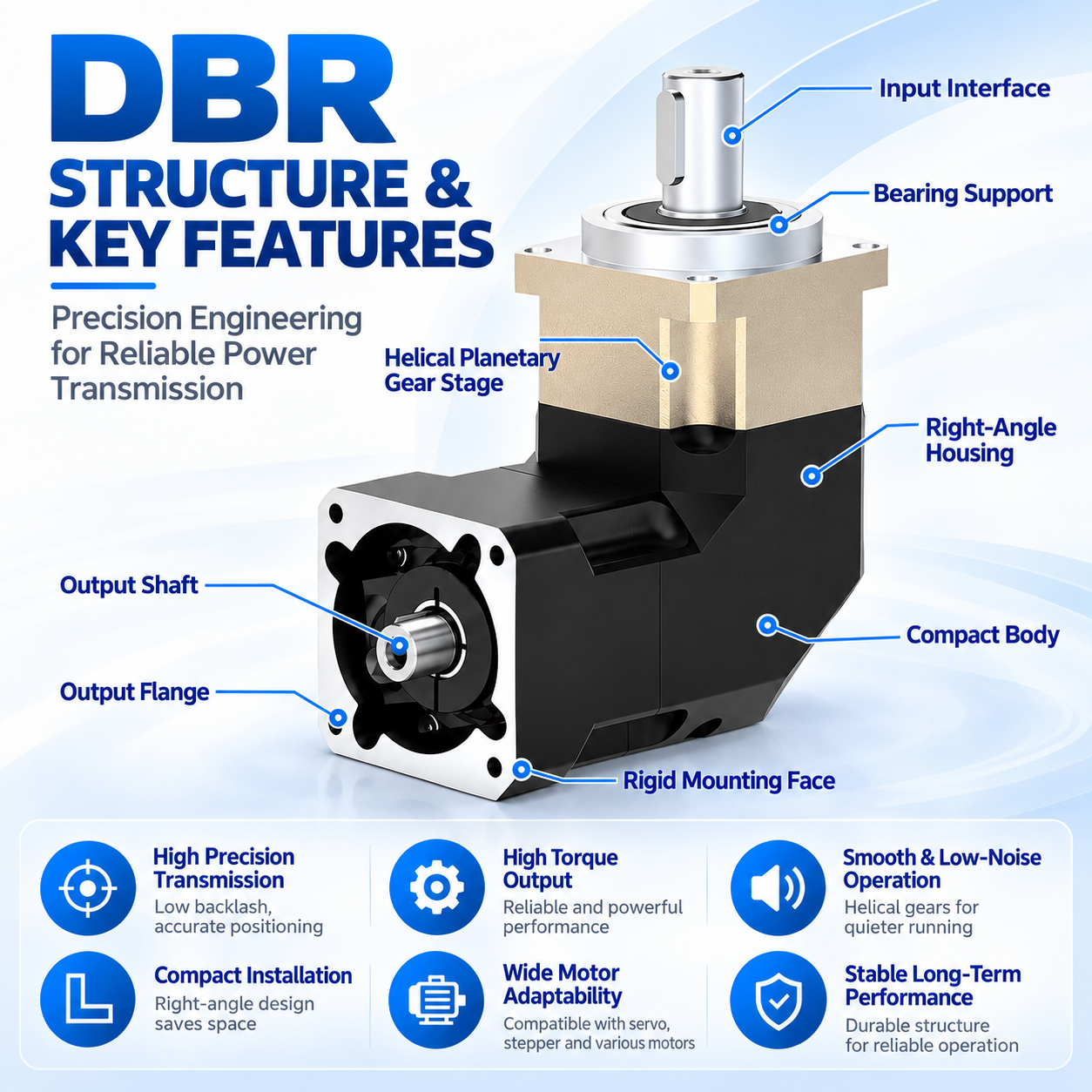

Construction and Specifications
DBR models match 50W to 750W servo motors and 42 / 57 / 86 stepper motors, with one-stage ratios 3 / 4 / 5 / 7 / 10 and two-stage ratios 15 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100. Frame sizes range from 45 mm to 180 mm with complete specifications. 2D/3D drawings are available on request.
Ordering Guidance
To confirm a configuration, provide your motor model and power, the required ratio, or share the application drawing. ECHOMACH engineers support model selection, motor matching and custom machining.

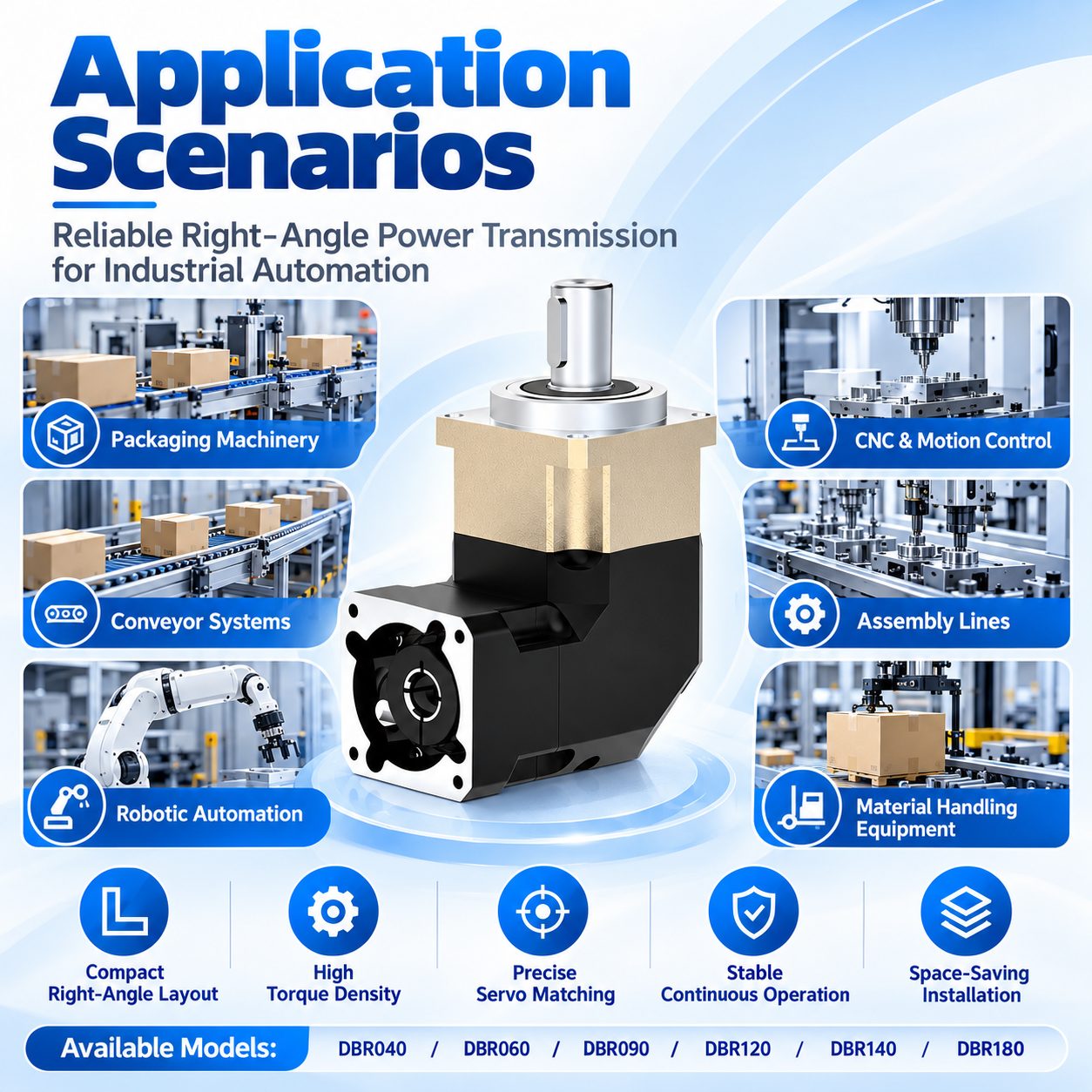

Typical Applications
DBR right-angle gearboxes suit automation equipment, CNC machine tools, robotics and space-limited precision transmission applications.
Why Choose ECHOMACH
Original factory custom machining, complete specifications, fast model selection and responsive technical support for overseas buyers.
